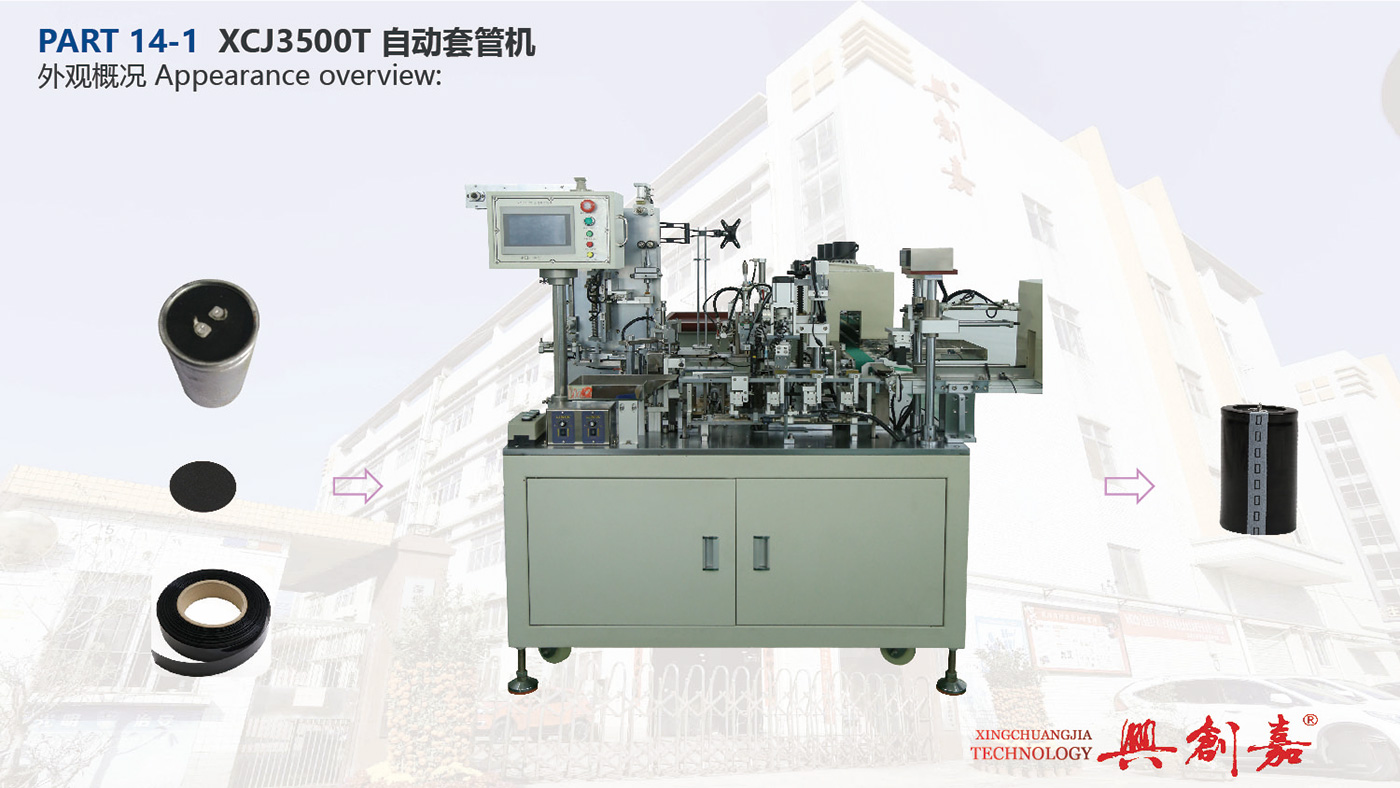

XCJ3500T Automatic casing machine

1. Size：2700 × 1900 × 2000mm

2. Weight：700KG

3. Power supply/ Power：AC220V/50HZ/60HZ / 5KW

4. Product specification：Ø22- Ø35×25-120

5. Equipment speed：20 ± 5pcs/min

6. Color：Standard color is computer white（Swatches are required for custom colors)

Product Video

未标题-2-39

未标题-2-40

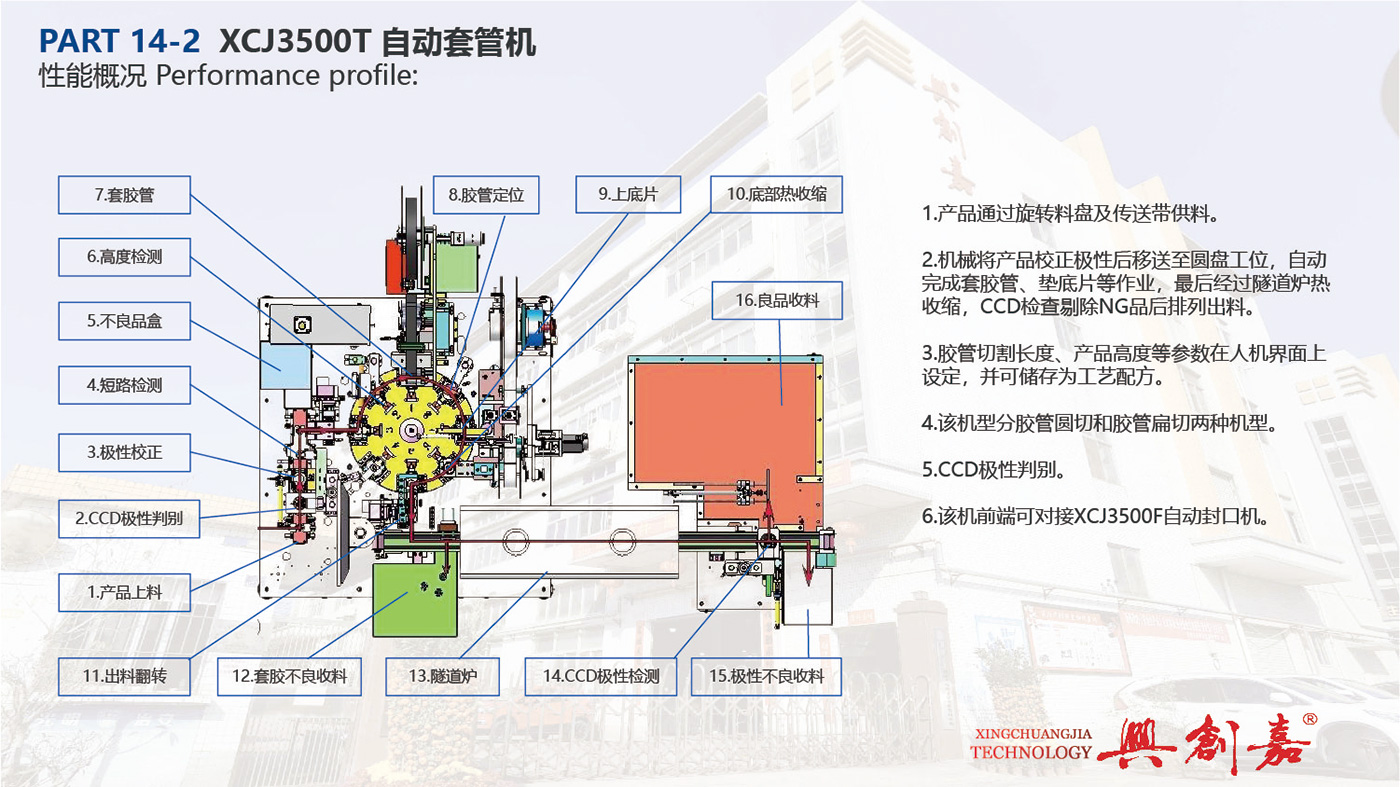

1. Products are fed through rotating trays and conveyor belts.

2. The machine will correct the polarity of the product and then transfer it to the disc station, where it will automatically complete operations such as casing rubber tubes and padding films. Finally, it will undergo thermal shrinkage in a tunnel furnace, and CCD inspection will remove NG products before arranging and discharging.

3. Parameters such as hose cutting length and product height are set on the human-machine interface and can be stored as process recipes.

4. This machine is divided into two types: hose round cutting and hose flat cutting.

5.CCD polarity identification.

6. The front end of the machine can be connected to the XCJ3500F automatic sealing machine.
