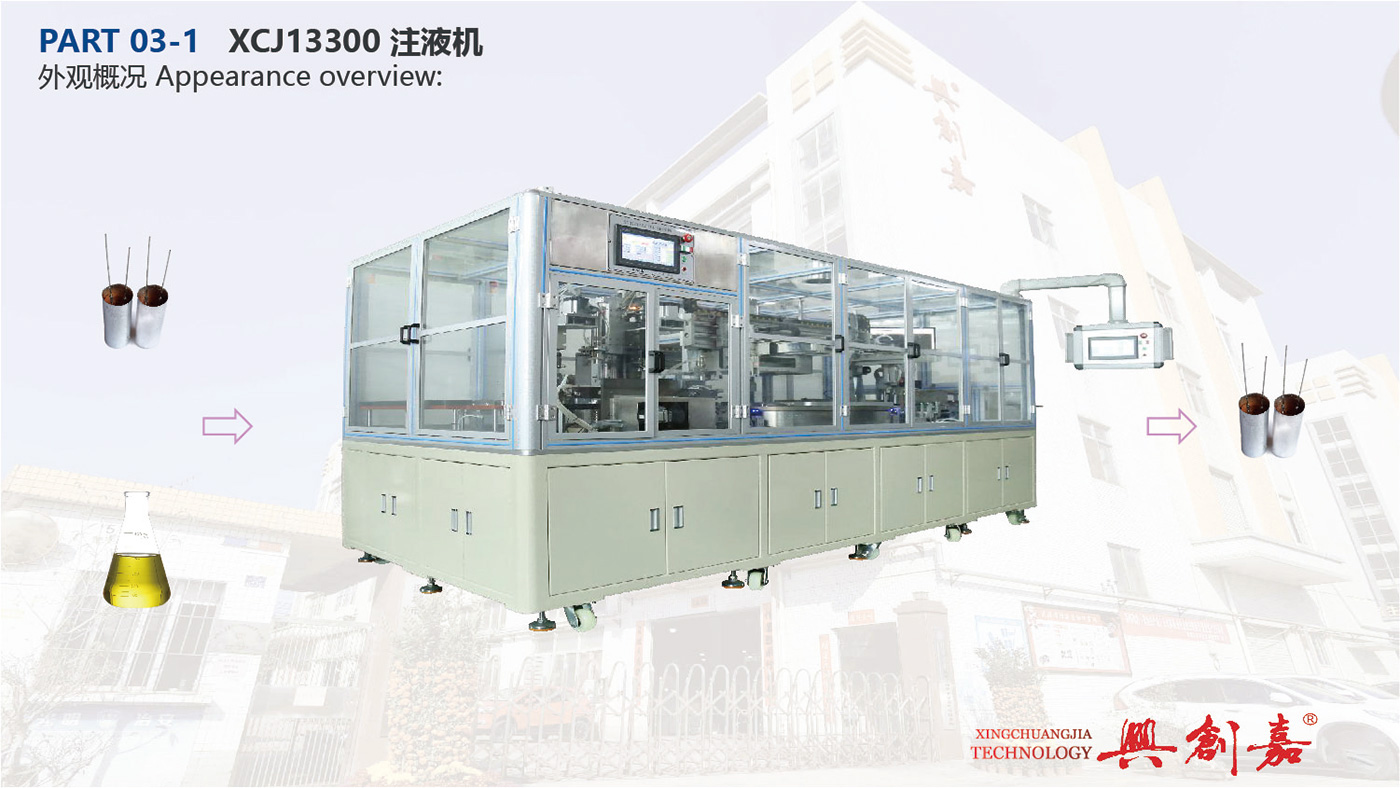

XCJ13300 Liquid injection machine

1. Size:11800x1200x2100mm(4 note 5 draw)

2. Weight:1800KG

3. Power supply/ Power:AC380V/50HZ/60HZ / 3.5KW

4. Product specification:Ø13- Ø45×25-45

5. Equipment speed:60-120pcs/min

6. Compressed air: 0.5~0.8Mpa

7. Vacuum: -0.09~-0.095Mpa

8. Dry air (nitrogen): pressure≧6Kgf/cm² (need to provide air source)

9. Injection accuracy: ±0.02g

10. Color:Standard color is computer white(Swatches are required for custom colors)

Product Video

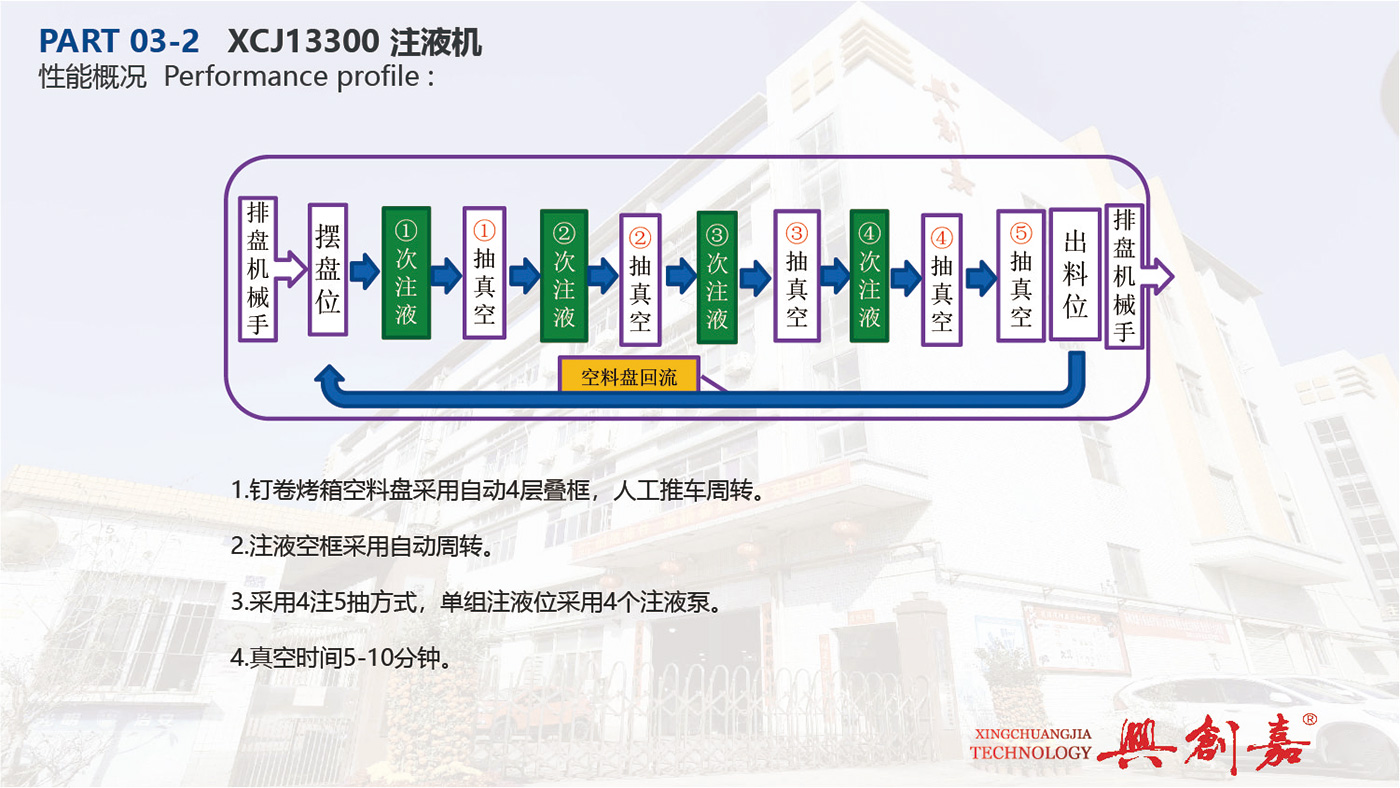

1. The empty material tray of the nail roll oven adopts automatic 4-layer stacking frame and manual cart turnover.

2. The empty frame for liquid injection adopts automatic turnover.

3. Adopt 4 injection and 5 pumping methods, and use 4 injection pumps for a single group of injection levels.

4. Vacuum time is 5-10 minutes.
