1. Size:2500x1150x1800
2. Weight:250KG
3. Power supply/ Power:AC220V / 50HZ / 60HZ / 2KW
4. Product specification:Ø22- Ø35×22-120
5. Equipment speed:20±5pcs/min
6. Color:Standard color is computer white(Swatches are required for custom colors)。
Note: Customers need to confirm the Product specification and parameters of each raw material when ordering equipment.

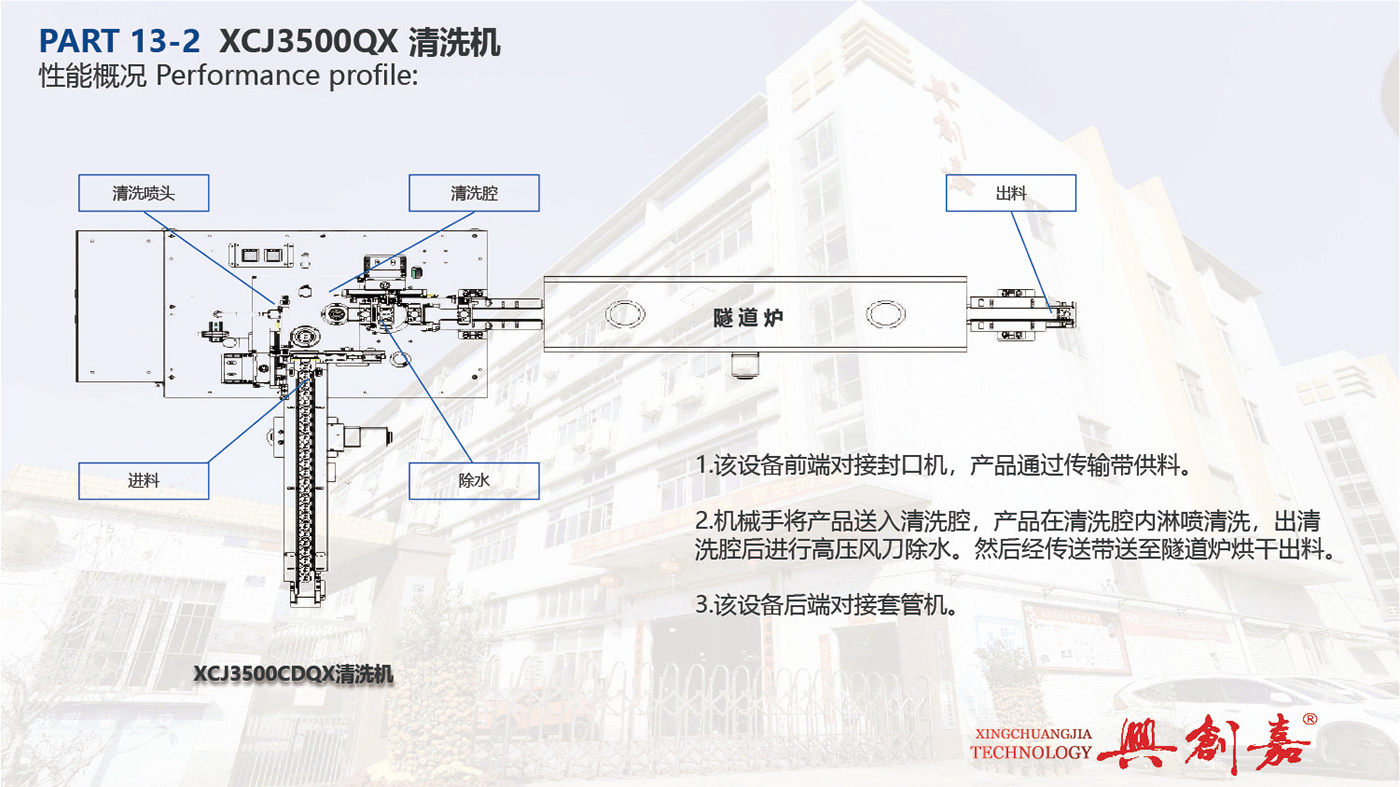

1. The front end of the equipment is connected to the sealing machine, and the products are fed through the conveyor belt.
2. The manipulator sends the product into the cleaning chamber, where the product is sprayed and cleaned. After leaving the cleaning chamber, the product is removed by a high-pressure air knife. Then it is sent to the tunnel furnace for drying and discharge via a conveyor belt.
3. The back end of the equipment is connected to the casing machine.
