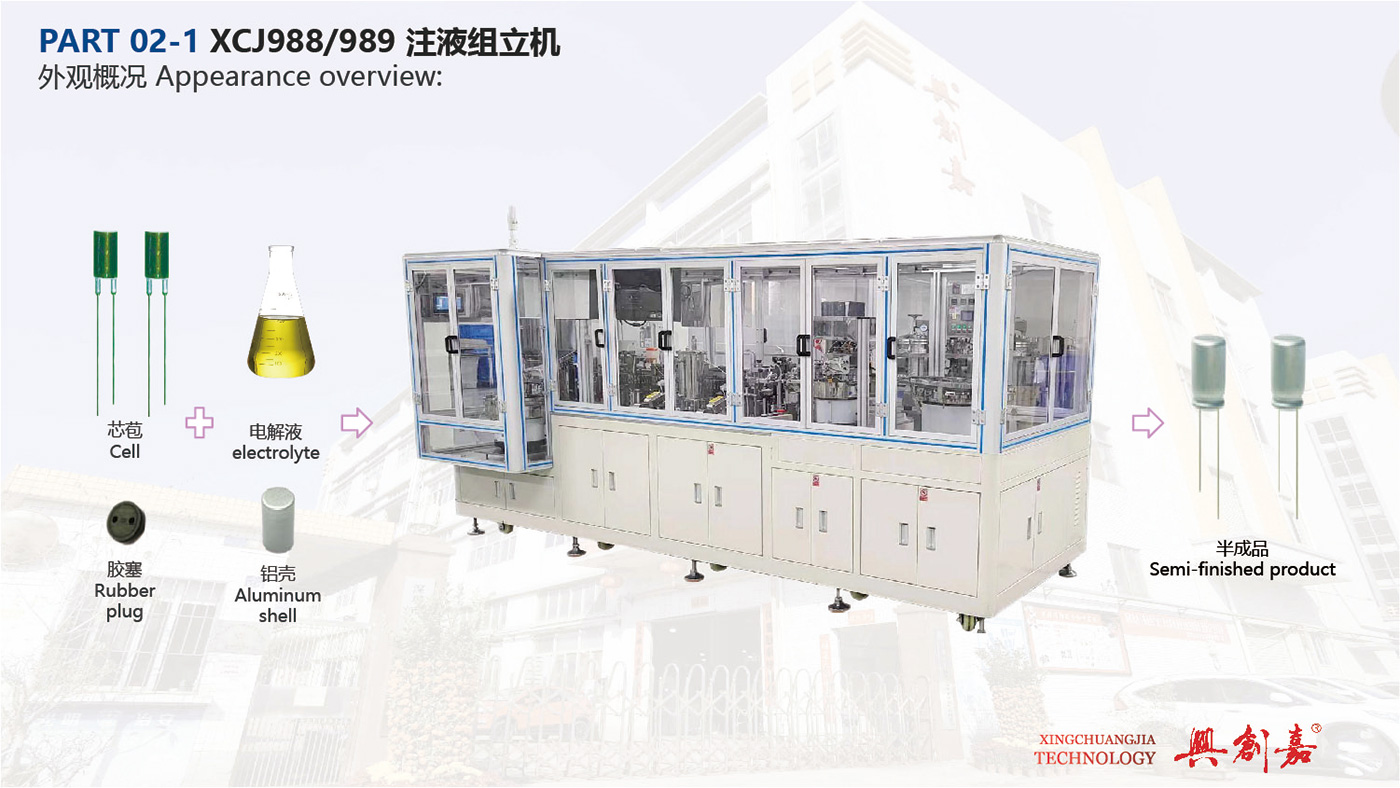

XCJ988/989 Liquid injection machine

1. Size：3600×1540×1870 mm （988 Type ）

4009×1700×1841 mm （989 Type ）

2. Weight：1280 KG

3. Power supply：AC220V/50HZ/60HZ

4. Power：4.0KW

6. Product specification：φ5×7-φ12×20mm (988 Type)、φ16×16-25-φ18×18-25mm (989 Type)

7. Equipment speed：50-60pcs/min (988 Type)、25-30pcs/min (989 Type)

5. Color：The standard color is apple green（Swatches are required for custom colors )

Product Video

未标题-2-02

未标题-2-03

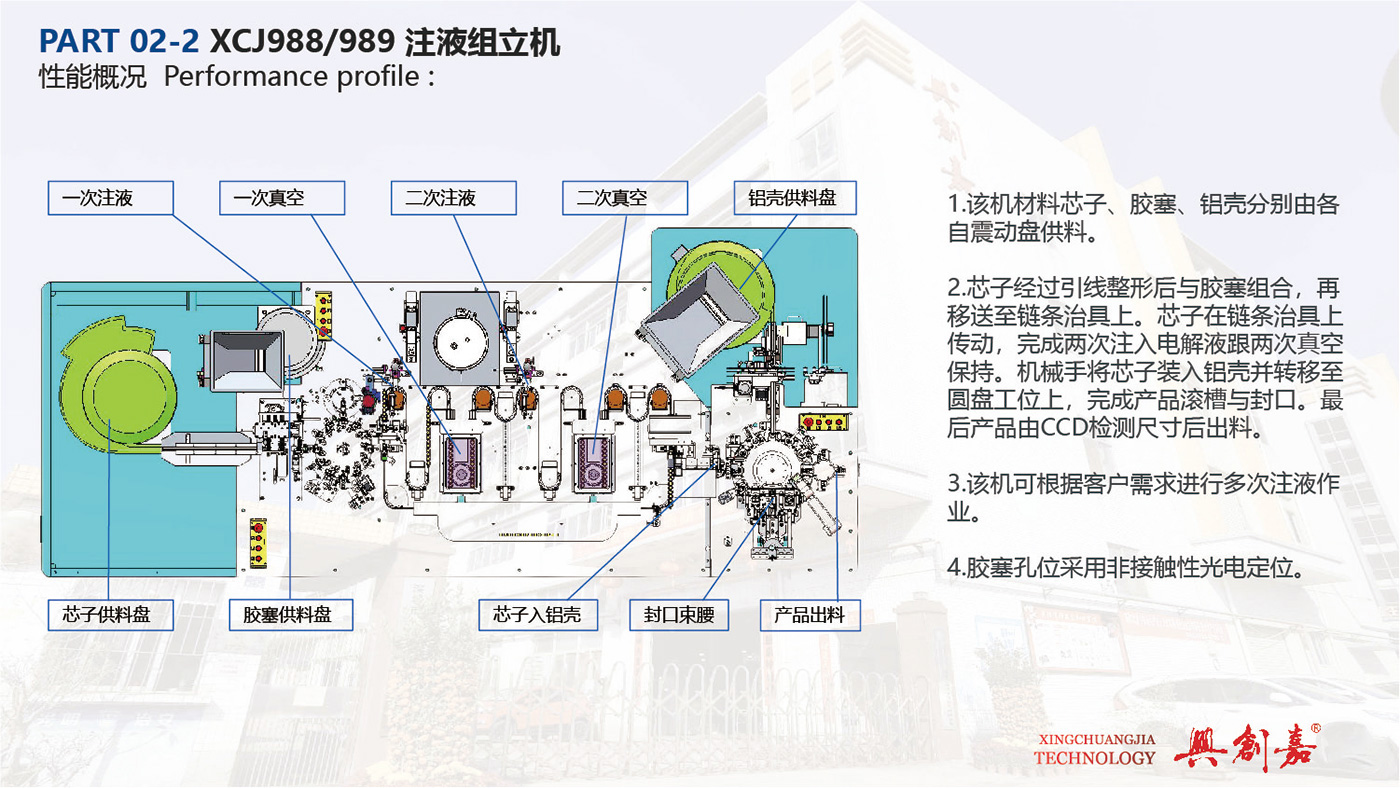

1. The material core, rubber plug and aluminum shell of this machine are supplied by their respective vibration plates.

2. After the lead shaping, the core is combined with the rubber plug and then transferred to the chain fixture. The core is driven on the chain fixture, completing two injections of electrolyte and two vacuum maintenance. The manipulator loads the core into the aluminum shell and transfers it to the disc station to complete the rolling groove and sealing of the product. The final product is inspected by CCD for size before being discharged.

3. This machine can perform multiple liquid injection operations according to customer needs.

4. The rubber plug hole position adopts non-contact photoelectric positioning.
