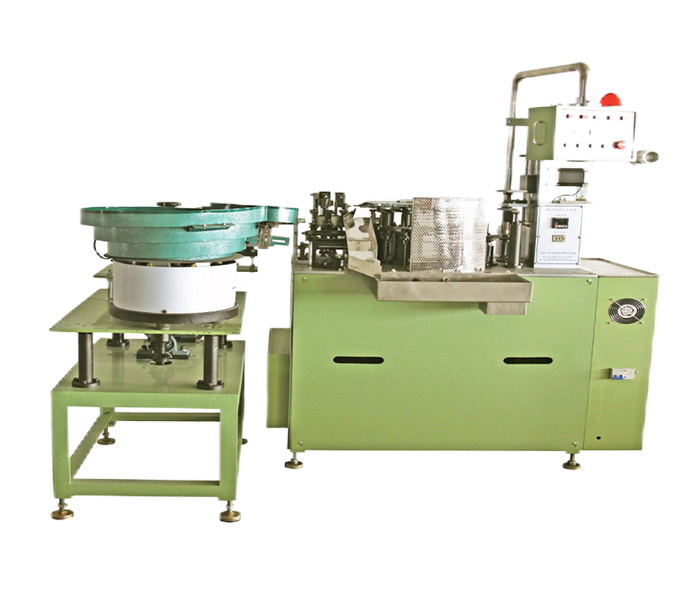

XCJ2280T Automatic casing machine

1. Size: 1595mm (length) * 1020mm (width) * 1451.5mm (height)

2. Weight：800KG

3. Power supply：Single phase AC220V/50HZ/60HZ

4. Power：3000W

5. Product specification：φ4-φ12×5-26

6. Equipment speed：35-45pcs/min (Speed is different for different specifications)

7. Color：The standard color is apple green（Swatches are required for custom colors)

Product Video

未标题-1-42

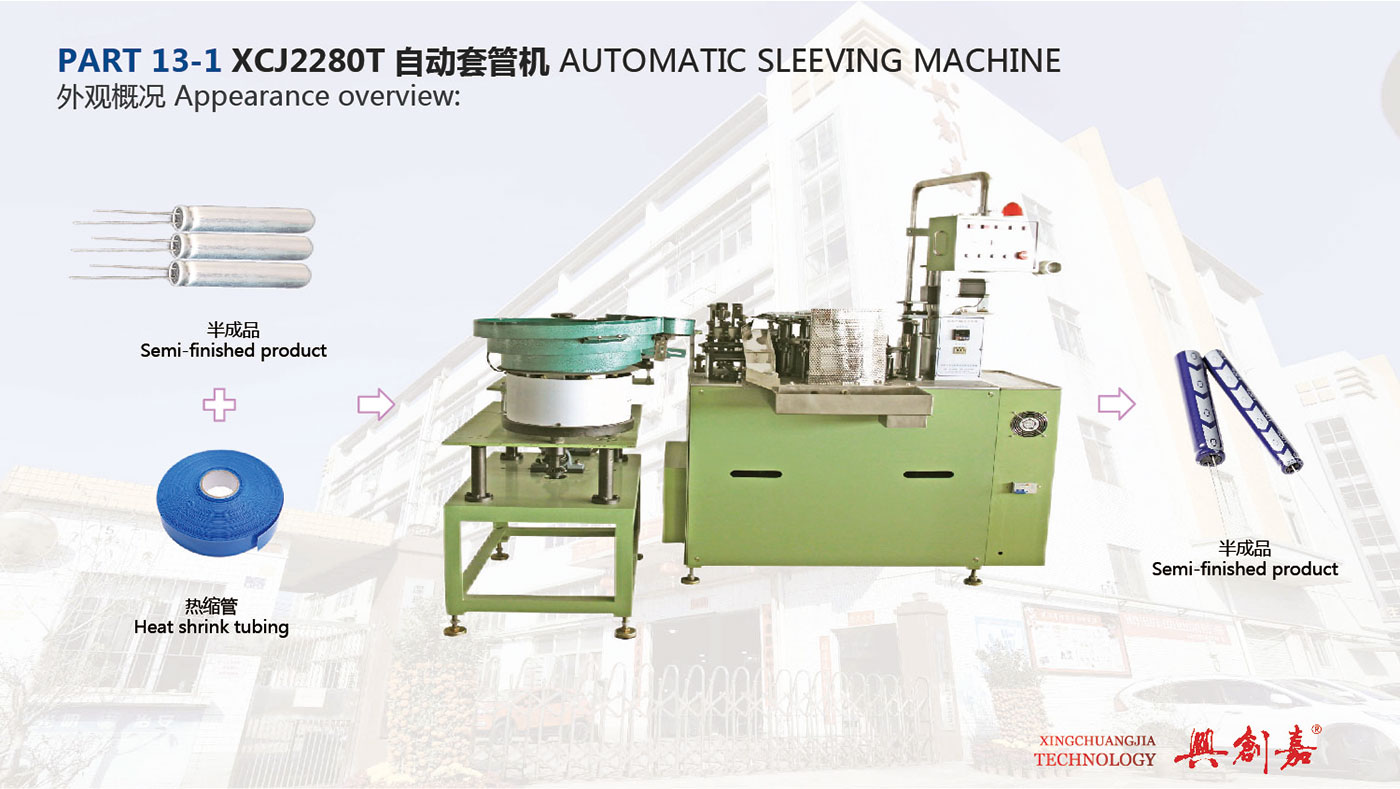

1. This machine is suitable for the production of slender electrolytic capacitors sleeving and printing (PVC/PET sleeve).

2. The semi-finished capacitor is fed on the vibrating plate and sent to the plates with 12 stations for pins adjustment polarity confirmation and placement.The equipment cuts the sleeve according to the set length, covers it on the product, and performs heat shrinkage to complete the labeling .

3. Duplex stations for heat shrinking with automatically avoid the product.

4. Upper and lower double-layer posing and positioning device.

5. The movement of the device is CAM mechanical without external air source.
