XCJ3500MJ Laser welding production line_Shenzhen Xingchuangjia Technology Co., Ltd.

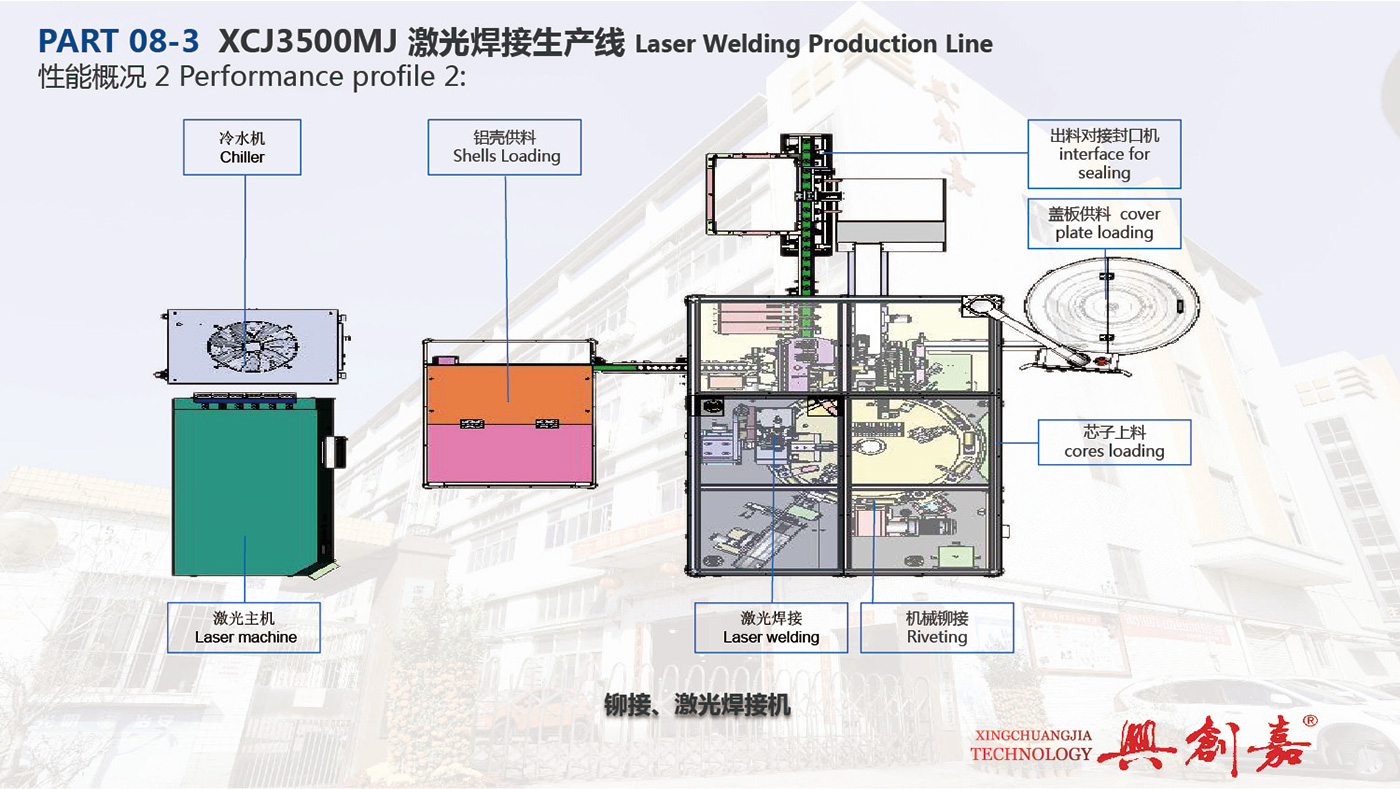

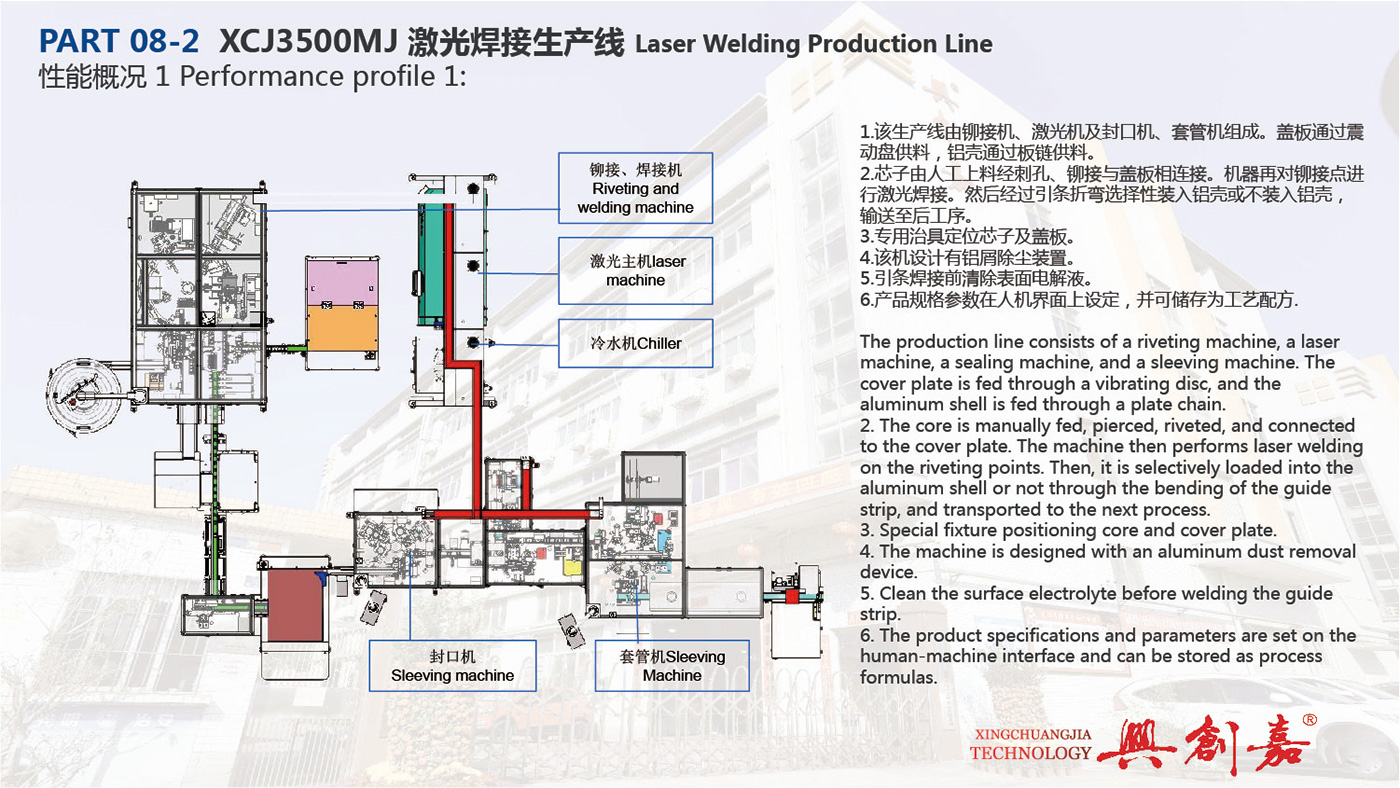

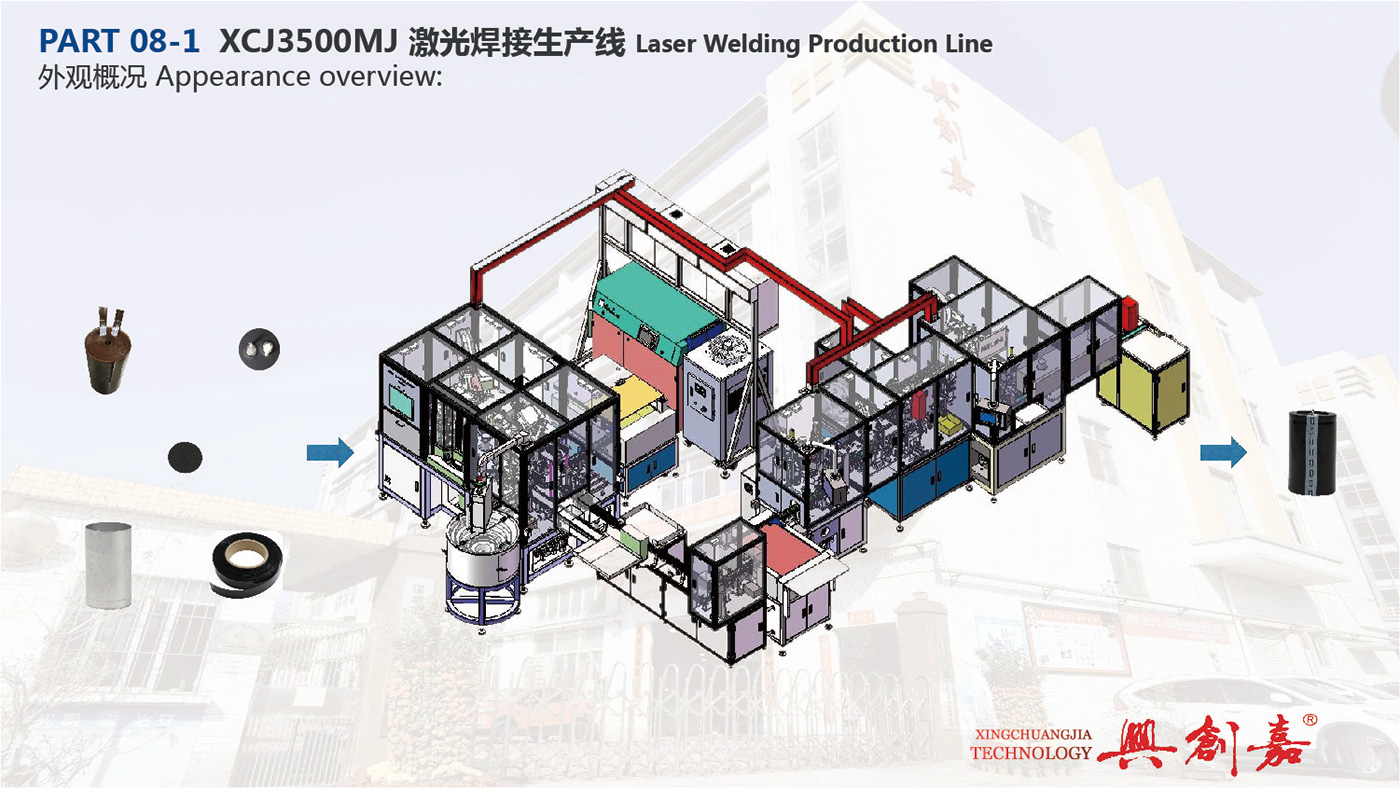

XCJ3500MJ Laser welding production line

1. Size: 4686 × 5060 × 1983mm

2. Weight: 1800KG (laser riveting machine)

3. Power supply/ Power: AC380V/ 50HZ/ 60HZ / 7.5KW

4. Product specification: Ø22- Ø35×25-70

5. Equipment speed: 20 ± 5pcs/min (varies within a certain range according to the Product specification)

6. Color: Standard color is computer white (Swatches are required for custom colors)

Note: Customers need to confirm the Product specification and parameters of each raw material when ordering equipment.

Product Video

未标题-4-15

未标题-4-16

未标题-4-17

Honor

Enterprise Honor Patent Qualifications

High-tech enterprises

ISO certificate

Small and medium new enterprises

Xingchuangjia Technology [invented] a method for assembling energy storage devices

Xingchuangjia Technology [invented] a real-time monitoring method for capacitor sealing and a monitoring device for capacitor sealing

Xingchuangjia Technology [invented] a method for manufacturing liquid aluminum electrolytic capacitors

Xingchuangjia Technology [invented] a pressurized impregnation machine for preparing aluminum electrolytic capacitors

Xingchuangjia Technology [invented] a method for manufacturing solid aluminum electrolytic capacitors

Xingchuangjia Technology [invented] a double-tank automatic impregnation machine for preparing aluminum electrolytic capacitors

Xingchuangjia Technology [invented] an automatic forming, carbonization and cleaning machine for the preparation of aluminum electrolytic capacitors

Xingchuangjia Technology [invented] a double-tank automatic impregnation machine for preparing aluminum electrolytic capacitors

Xingchuangjia Technology [software] - polymer capacitor automatic production line control software

Xingchuangjia Technology [software]-leaded electrolytic capacitors, super capacitors, automatic production line control software

Xingchuangjia Technology【Soft Author】-twisted-foot electrolytic capacitors, super capacitors, automatic production line control software

Xingchuangjia Technology [utility model] a kind of hopper

Xingchuangjia Technology [utility model] a foil cleaning device for energy storage devices

Xingchuangjia Technology [utility model] an energy storage transmission mechanism

Xingchuangjia Technology [Utility Model] An assembly device for the element and rubber plug of an energy storage device

Xingchuangjia Technology [utility model] an assembly device for energy storage devices

Xingchuangjia Technology [utility model] a sealing device for energy storage devices

Xingchuangjia Technology [utility model] a box-pull mechanism for energy storage devices

Xingchuangjia Technology [utility model] a discharge device for capacitor cover plates

Xingchuangjia Technology [utility model] - a welding fixture and its ejection device

Xingchuangjia Technology [Utility Model] An Automatic Unloading Device

Xingchuangjia Technology [Appearance] Connecting Spot Welding Machine
