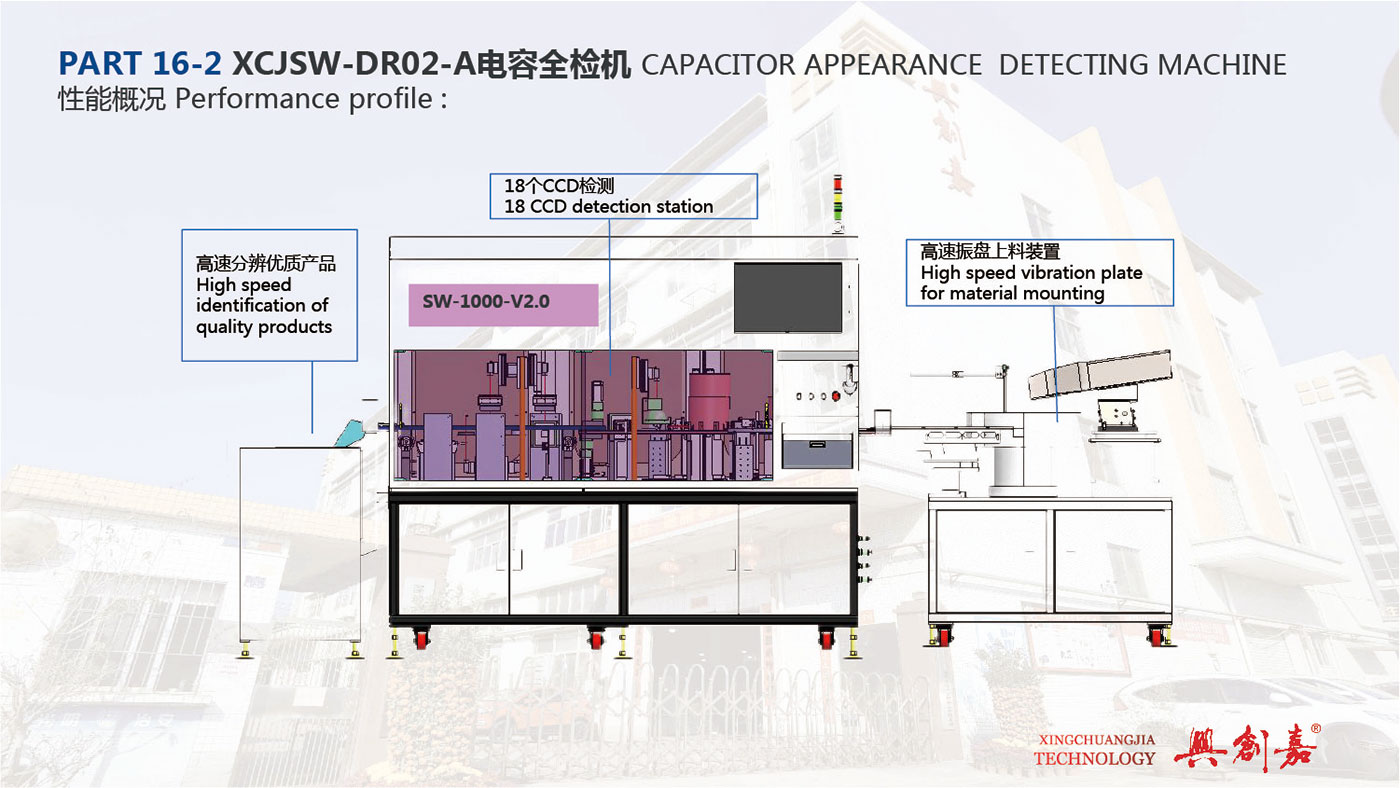

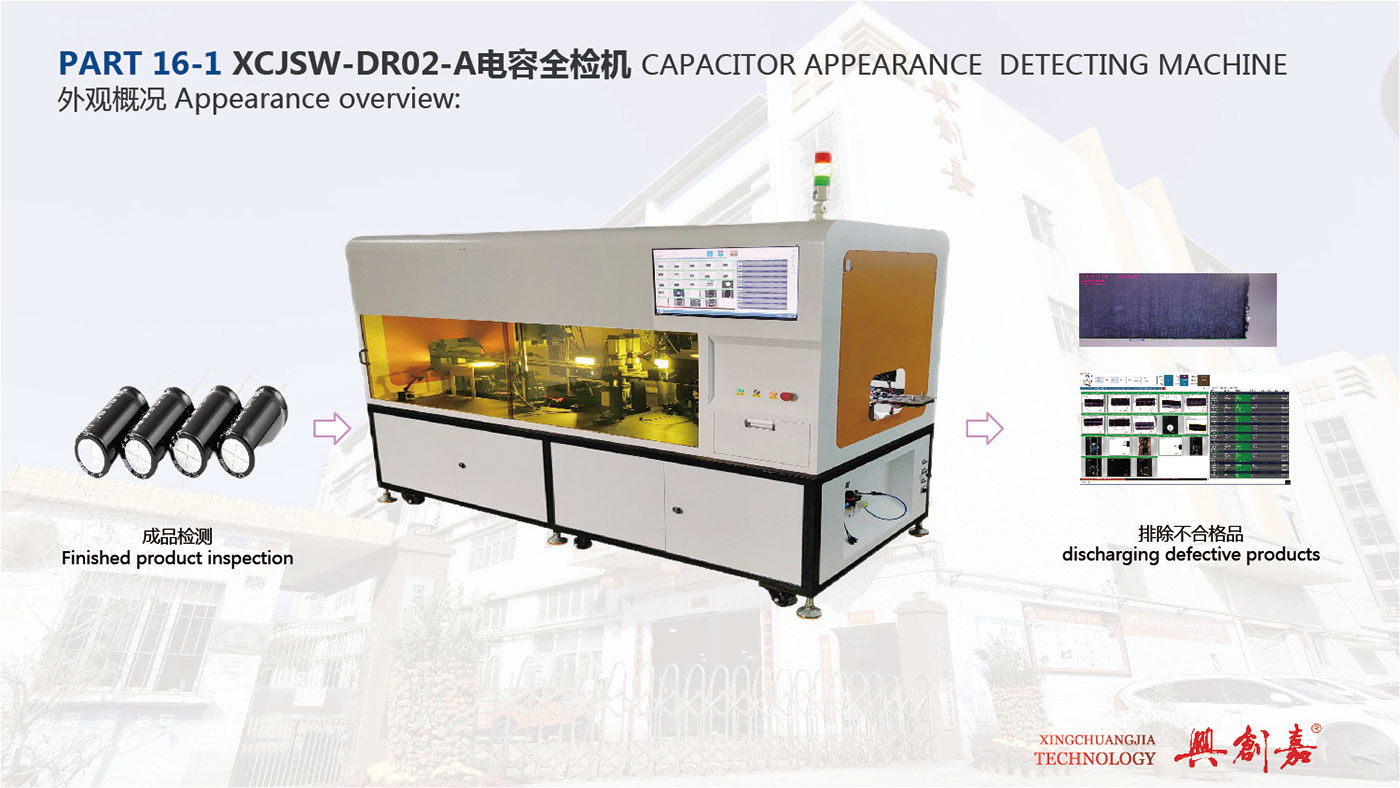

XCJSW-DR02-A Appearance Inspection Machnie for aluminium electrolytic capacitors and supercapacitors

1. Size: 4500mm (length) * 1000mm (width) * 2100mm (height)

2. Equipment Power: 3.5KW

3. Detection status: flying shot

4. Detection Speed: 300~600/min (subject to φ8)

5. Air source pressure: 0.4-0.7Mpa

6. Equipment voltage: AC220/50HZ

7. Number of camera groups: 18 groups of cameras

8. Compatible product Size: φ6-10, 12 and above

9. Rejection device: high-speed automatic removal

10. Inspection content: poor appearance, bad size, irregularities, etc.

11. Software algorithm: deep learning + self-developed defect algorithm

12. Product conveying method: Vibrating plate feeding, non-destructive conveying
