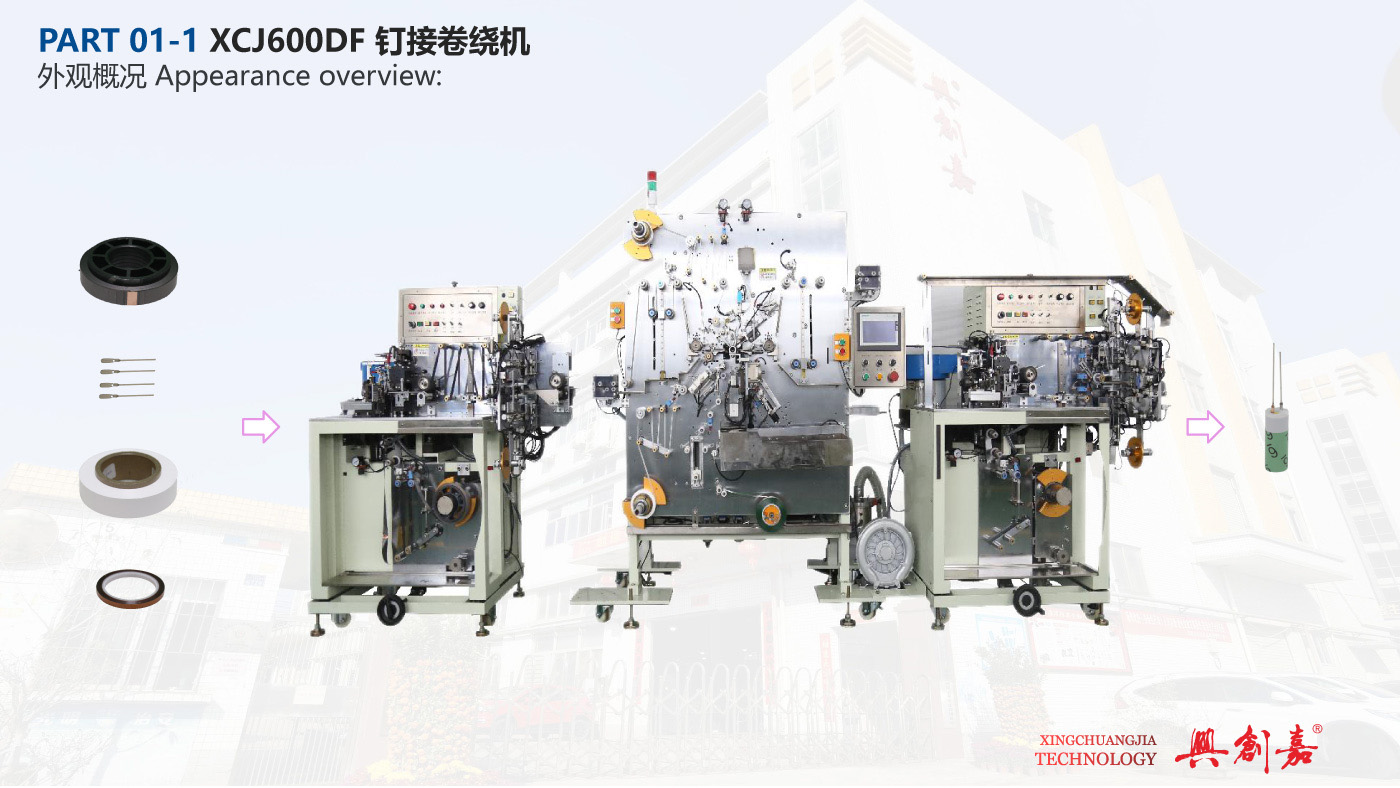

XCJ600DF Nailing and winding machine

1. Size ：3900×850×1650mm

2. Weight ：1200 KG

3. Power supply ：AC220V/50HZ/60HZ

4. Power ：3.8KW

6. Product specification：φ5-φ13

7. Equipment speed：30-55pcs/min

8. Color ：The standard color is apple green （Swatches are required for custom colors )

Product Video

XCJ600DF 钉接卷绕机-详情

未标题-2-01

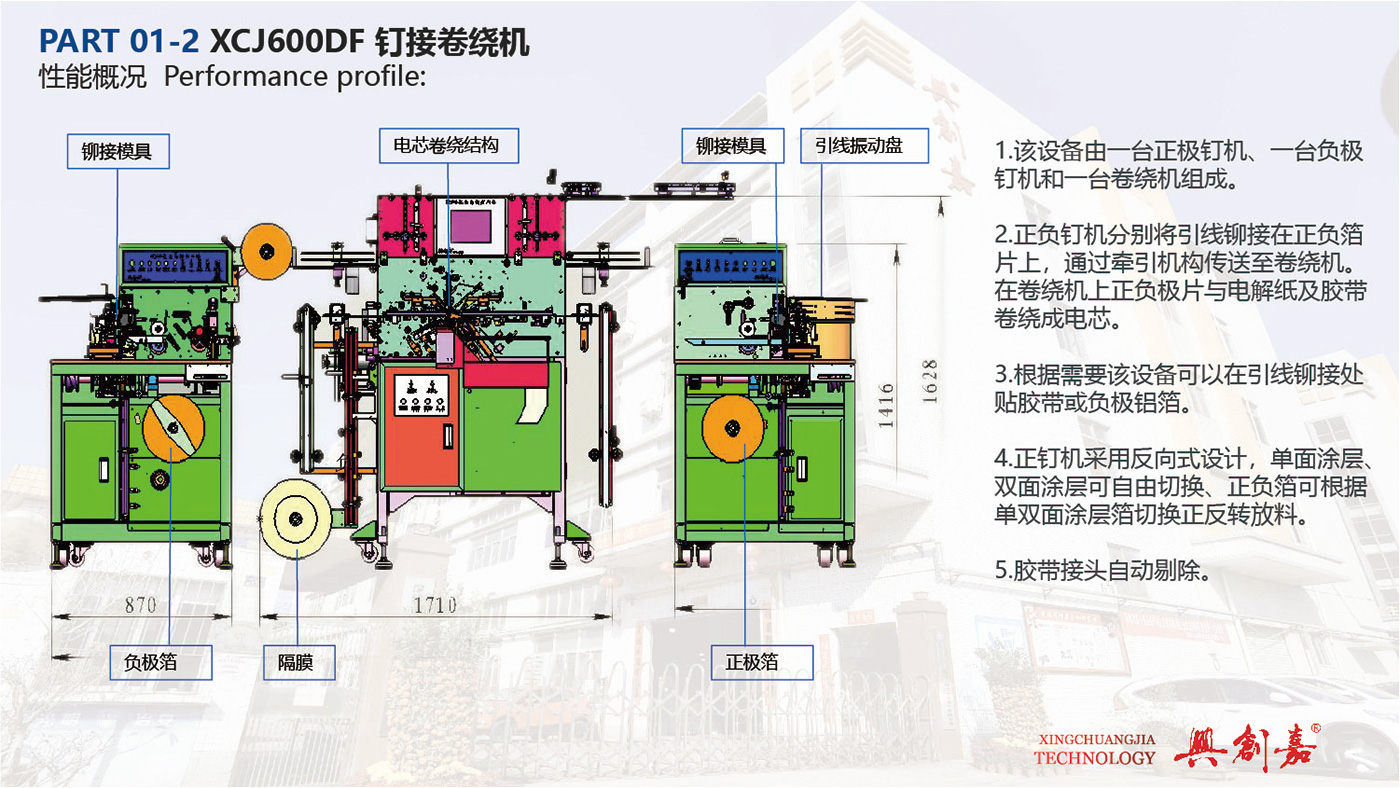

1. The equipment consists of a positive electrode nailing machine, a negative electrode nailing machine and a winding machine.

2. The positive and negative nailing machines rivet the leads to the positive and negative foils respectively, and transfer them to the winding machine through the traction mechanism. On the winding machine, the positive and negative electrode sheets, electrolytic paper and tape are wound into battery cores.

3. If necessary, the device can be pasted with tape or negative aluminum foil on the lead riveting area.

4. The forward nailing machine adopts a reverse design, single-sided coating and double-sided coating can be freely switched, and the positive and negative foils can be switched forward and reverse according to the single- and double-sided coating foils.

5. Tape joints are automatically removed.
