XCJ2500ZB Automatic assembly machine

1. Size: 1600mm (length) * 1280mm (width) * 1740mm (height)

2. Weight：980KG

3. Power supply：AC220V/50HZ/60HZ

4. Power：2.5KW

5. Equipment speed：35-45pcs/min

6. Color: The standard color is apple green (customized Color needs to provide board).

7. Product specification and Speed:

13X16-30 or 13X30-50，40+5pcs/min

Φ16X20-45mm or 40-50mm，40+5pcs/min

Φ18X20-45mm or 40-50mm，40+5pcs/min

Φ22X25-45mm or 40-50mm，40+5pcs/min

Remarks: 1. This machine is suitable for height adjustment in a certain range of products; if diameter adjustment is required, a complete set of specification parts needs to be replaced.

Product Video

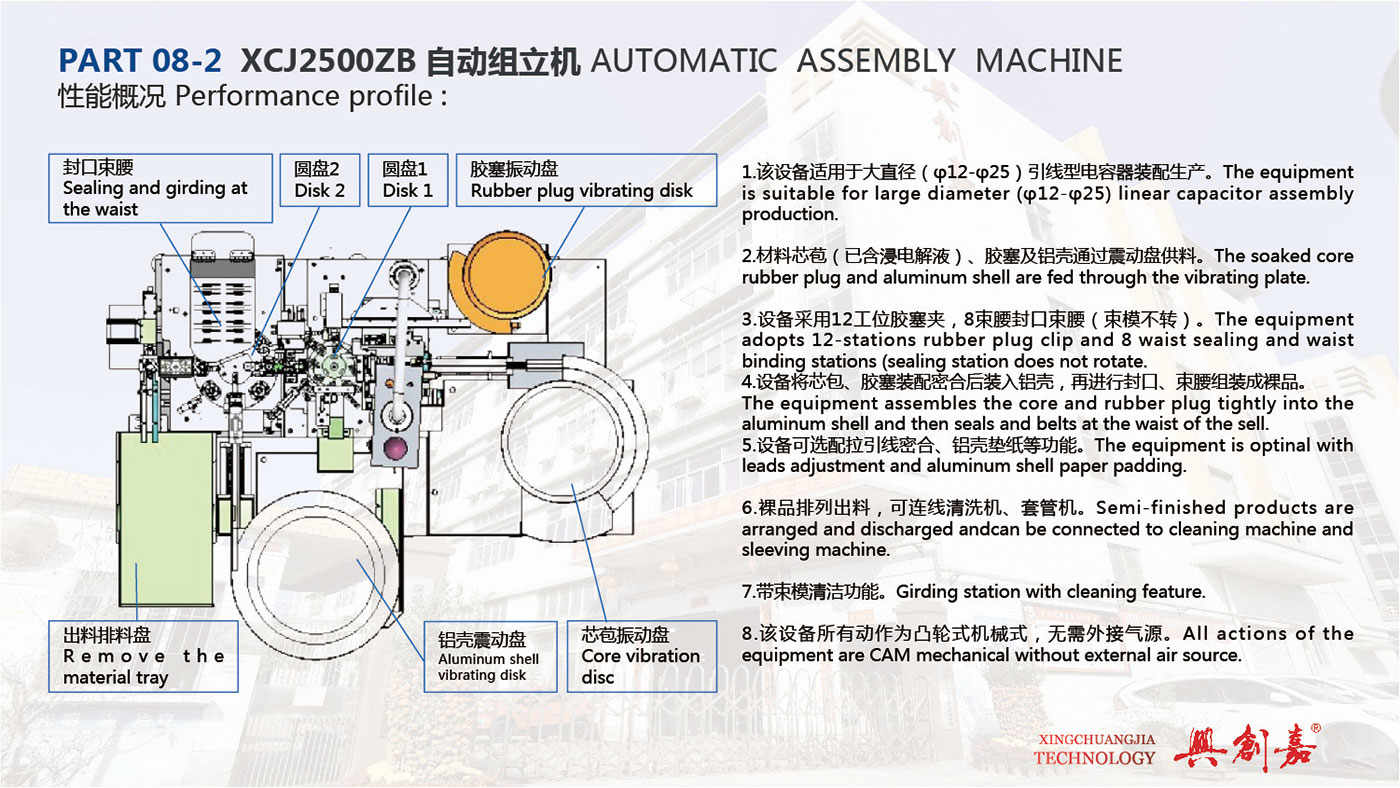

未标题-1-27

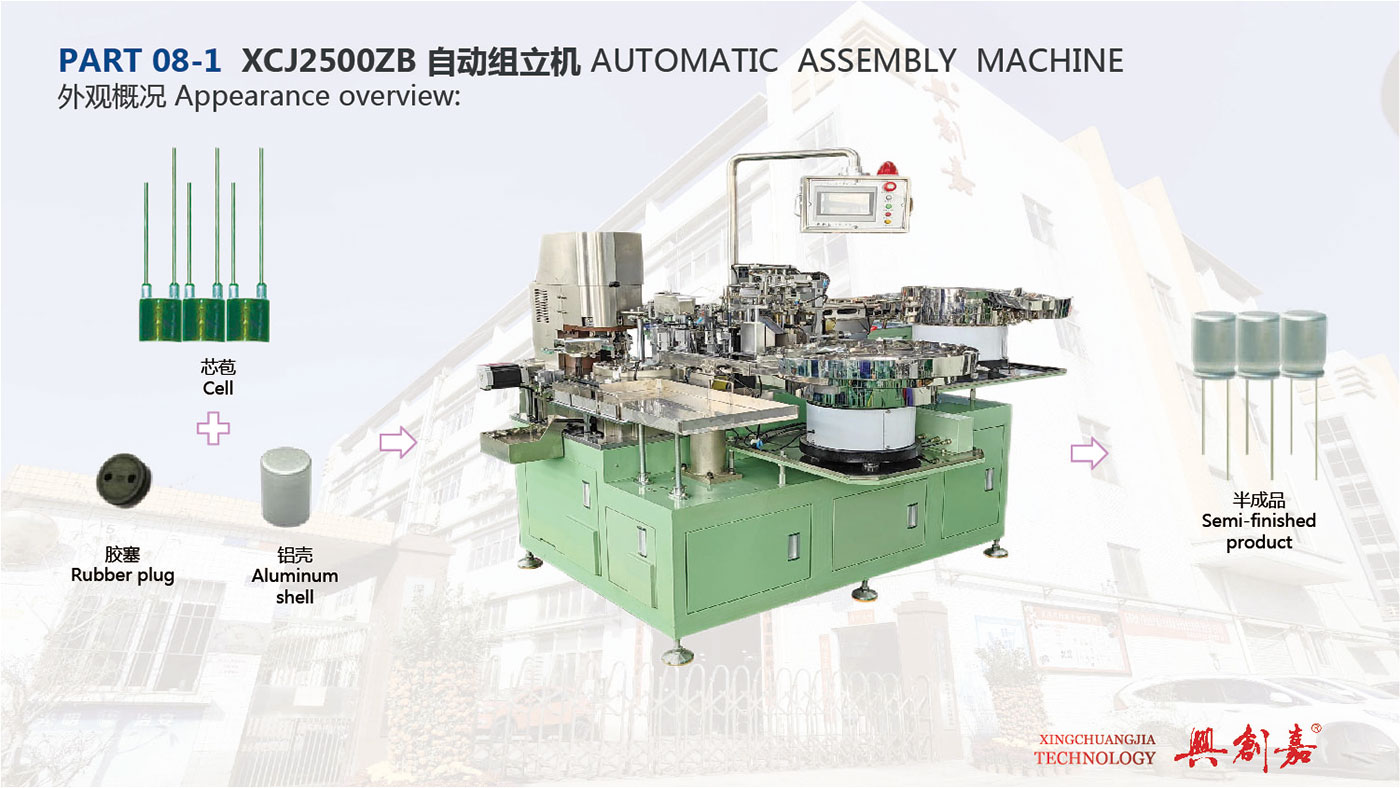

未标题-1-28
