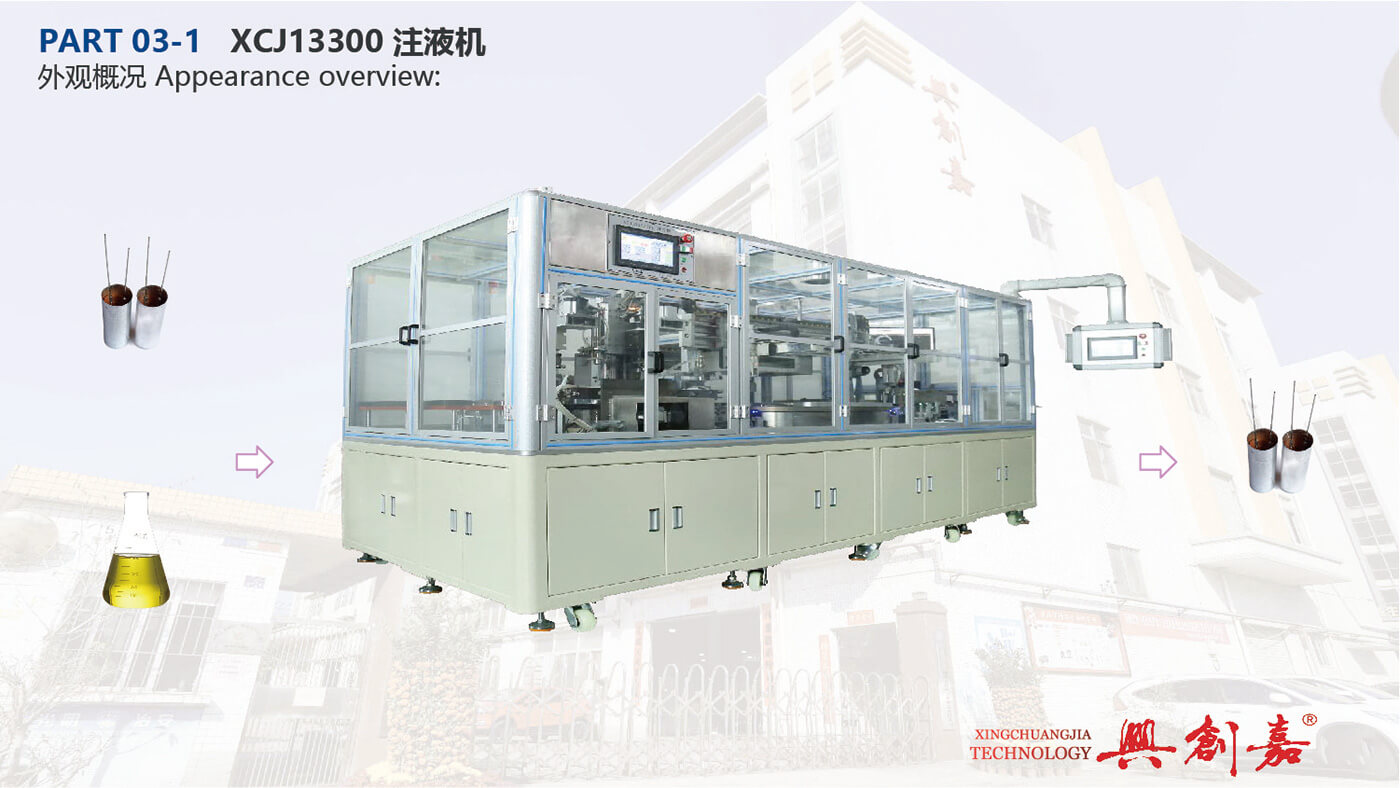

XCJ13300 Liquid injection machine

1. Size:11800x1200x2100mm(4 note 5 draw)

2. Weight:1800KG

3. Power supply/ Power:AC380V/50HZ/60HZ / 3.5KW

4. Product specification:Ø13- Ø45×25-45

5. Equipment speed:60-120pcs/min

6. Compressed air;0.5~0.8Mpa

7. Vacuum;-0.09~-0.095Mpa

8. Dry air (nitrogen); pressure≧6Kgf/cm² (need to provide air source)

9. Injection accuracy;±0.02g

10. Color:Standard color is computer white(Swatches are required for custom colors)。

Product Video

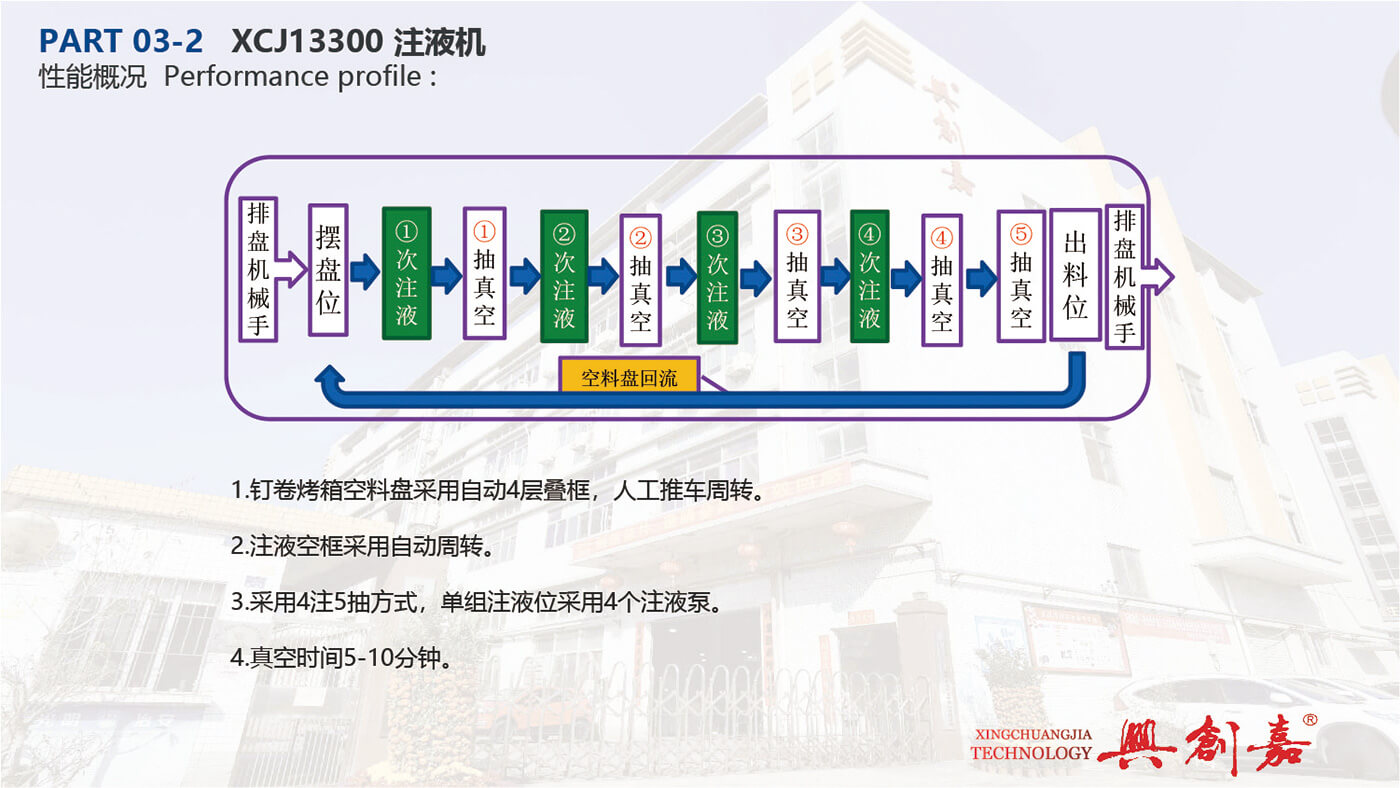

1. The empty material tray of the nail roll oven adopts an automatic 4-layer stacking frame, and the manual cart turnover.

2. The liquid injection empty frame adopts automatic turnover.

3. Adopt 4-injection and 5-pumping method, and use 4 injection pumps for a single injection level.

4. The vacuum time is 5-10 minutes.
