XCJ3500SMZ+Injection+sealing+cleaning+casing production line

1. Size：10000x6040x2200mm

2. Weight：8400Kg

3. Power supply/ Power：AC380V/50HZ/60HZ / 26.5KW

4. Product specification：Ø22- Ø45×25-120

5. Equipment speed：15±5pcs/min

6. Color：Standard color is computer white（Swatches are required for custom colors)

Product Video

未标题-2-42

未标题-2-43

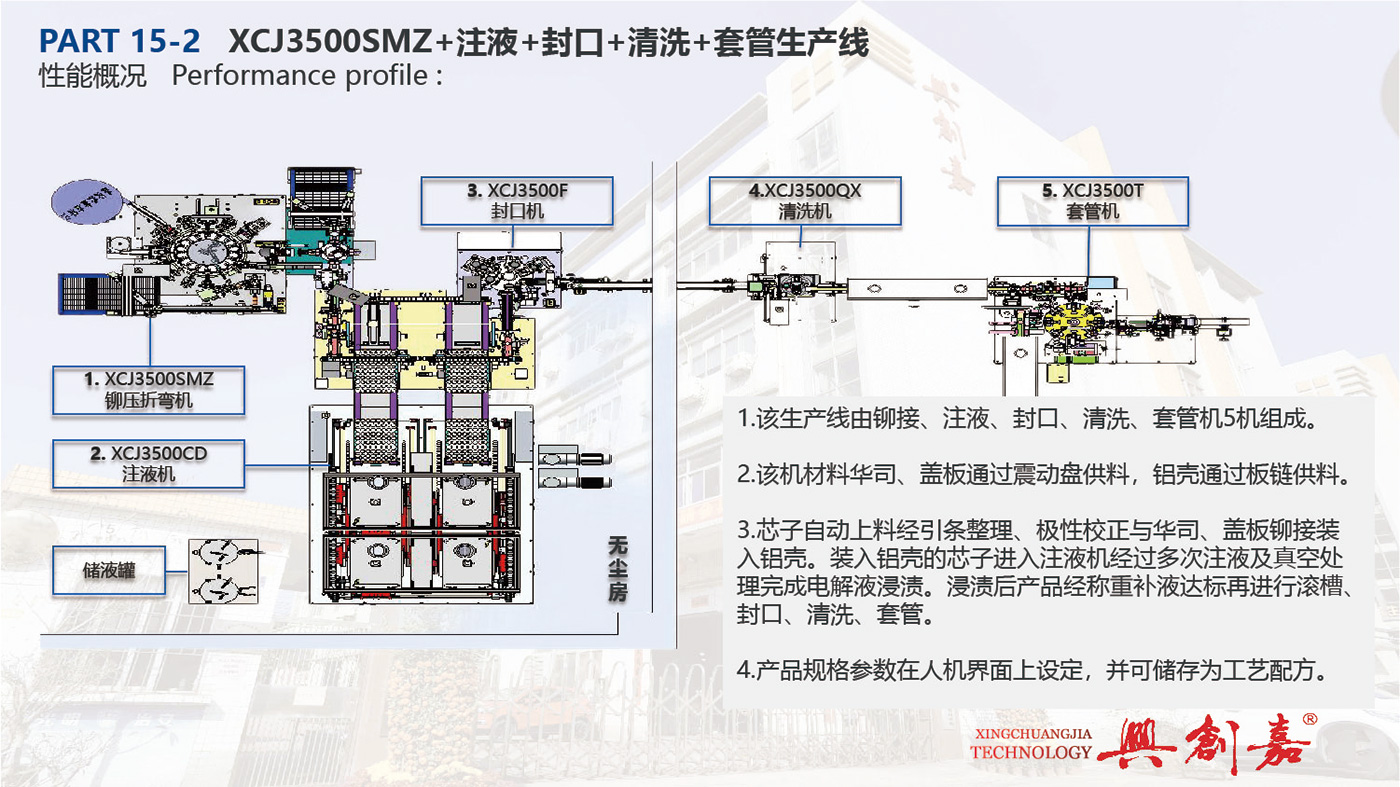

1. The production line consists of 5 machines including riveting, liquid injection, sealing, cleaning and casing machines.

2. The machine's material washers and cover plates are fed through the vibration plate, and the aluminum shell is fed through the plate chain.

3. The core is automatically loaded and loaded into the aluminum shell after being organized by guide strips, polarity correction, riveted with washers and covers. The core loaded into the aluminum shell enters the liquid injection machine and undergoes multiple liquid injections and vacuum treatment to complete electrolyte impregnation. After the impregnation, the product is weighed and rehydrated to meet the standard, and then rolled, sealed, cleaned and sleeved.

4. Product specification parameters are set on the human-machine interface and can be stored as process recipes.
