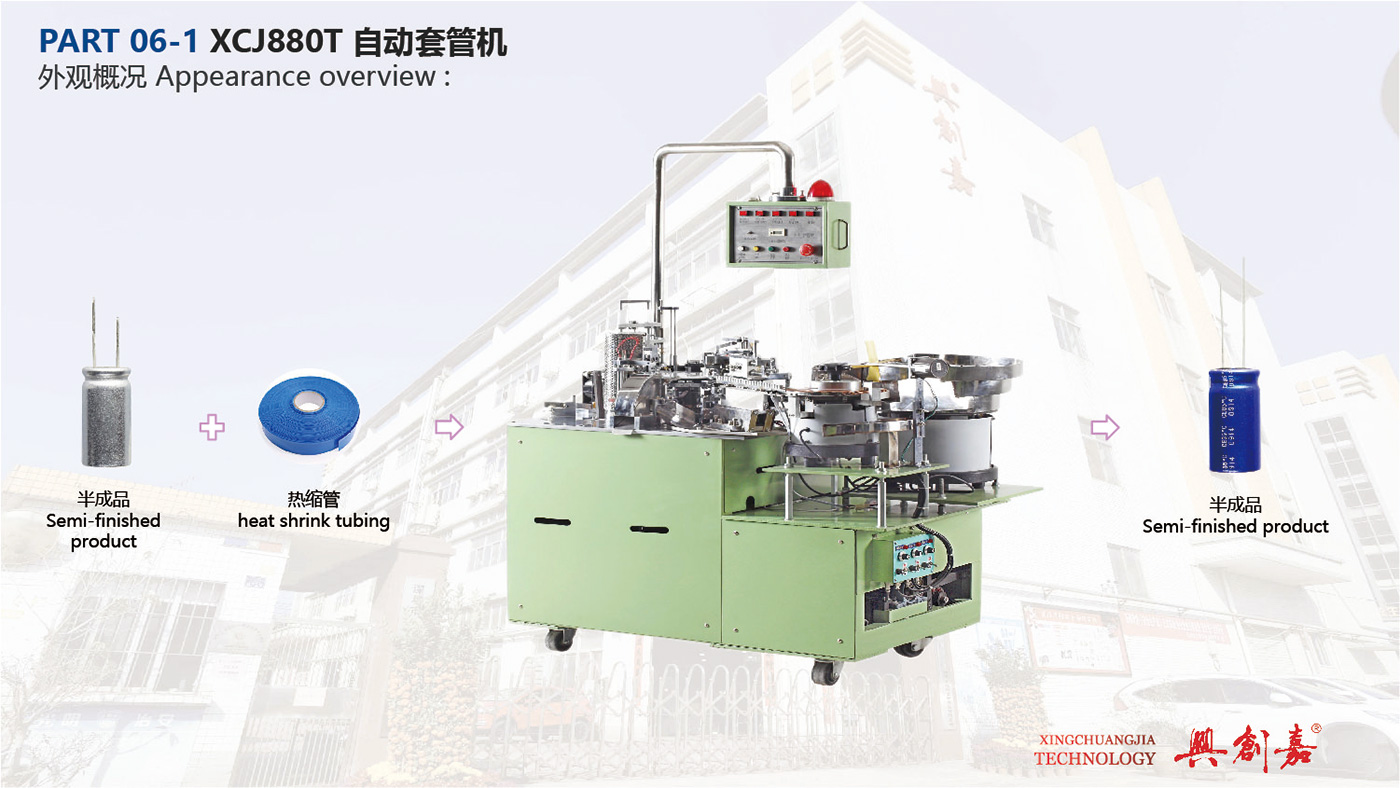

XCJ880T Automatic Casing Machine

1. Size：1300 × 900 × 1700mm

2. Weight：680KG

3. Power supply：AC220V/50HZ/60HZ

4. Power：2.5KW

5. Product specification：φ4-φ12×5-26mm

6. Equipment speed：70-110pcs/min

7. Color：The standard color is apple green（Swatches are required for custom colors)

Product Video

未标题-2-15

未标题-2-16

1. This machine is suitable for the production of small-sized lead-type supercapacitor rubber tubes.

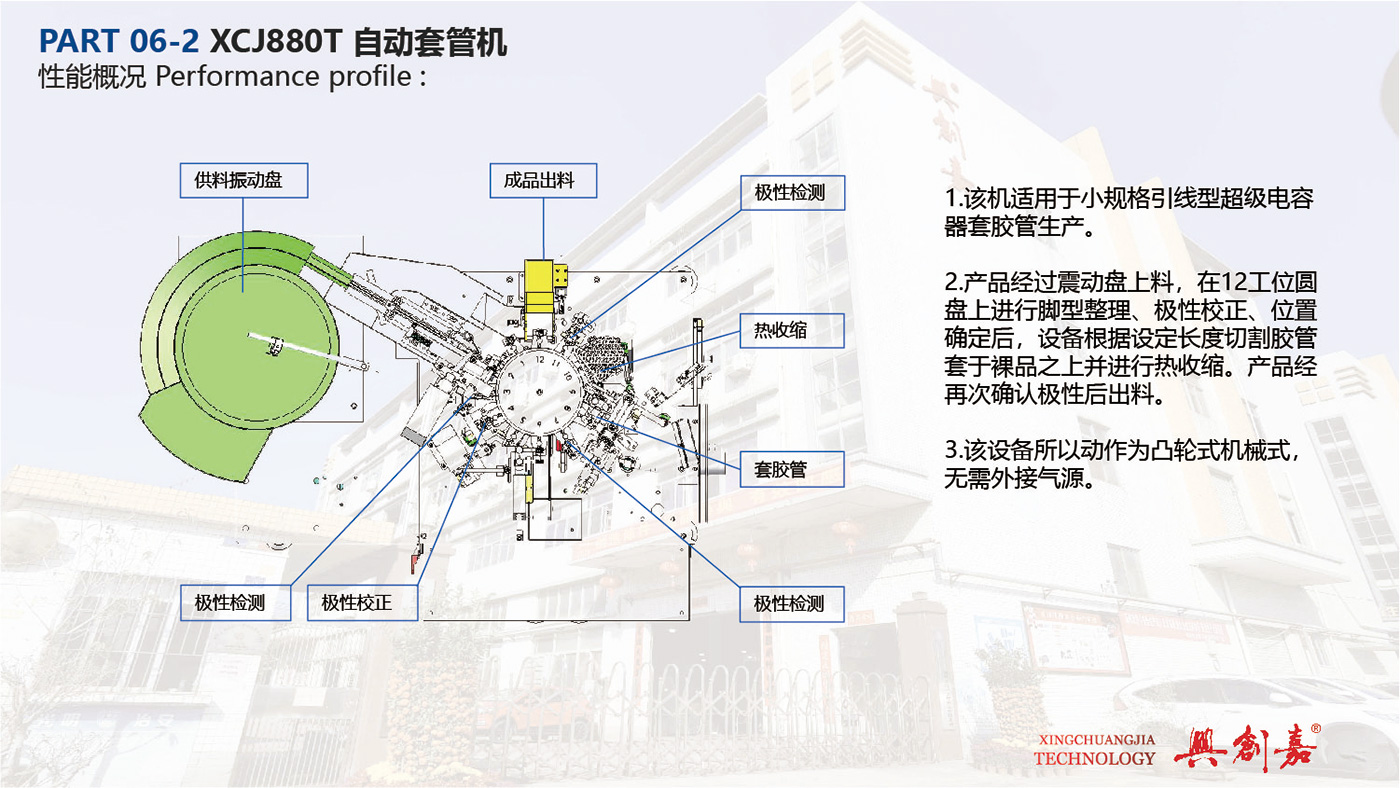

2. After the product is loaded on the vibrating plate, the foot shape is sorted, the polarity is corrected, and the position is determined on the 12-station disc, the equipment cuts the hose according to the set length and puts it on the bare product and performs heat shrinkage. The product is discharged after confirming its polarity again.

3. All the movements of this equipment are cam-type mechanical, and no external air source is required.
