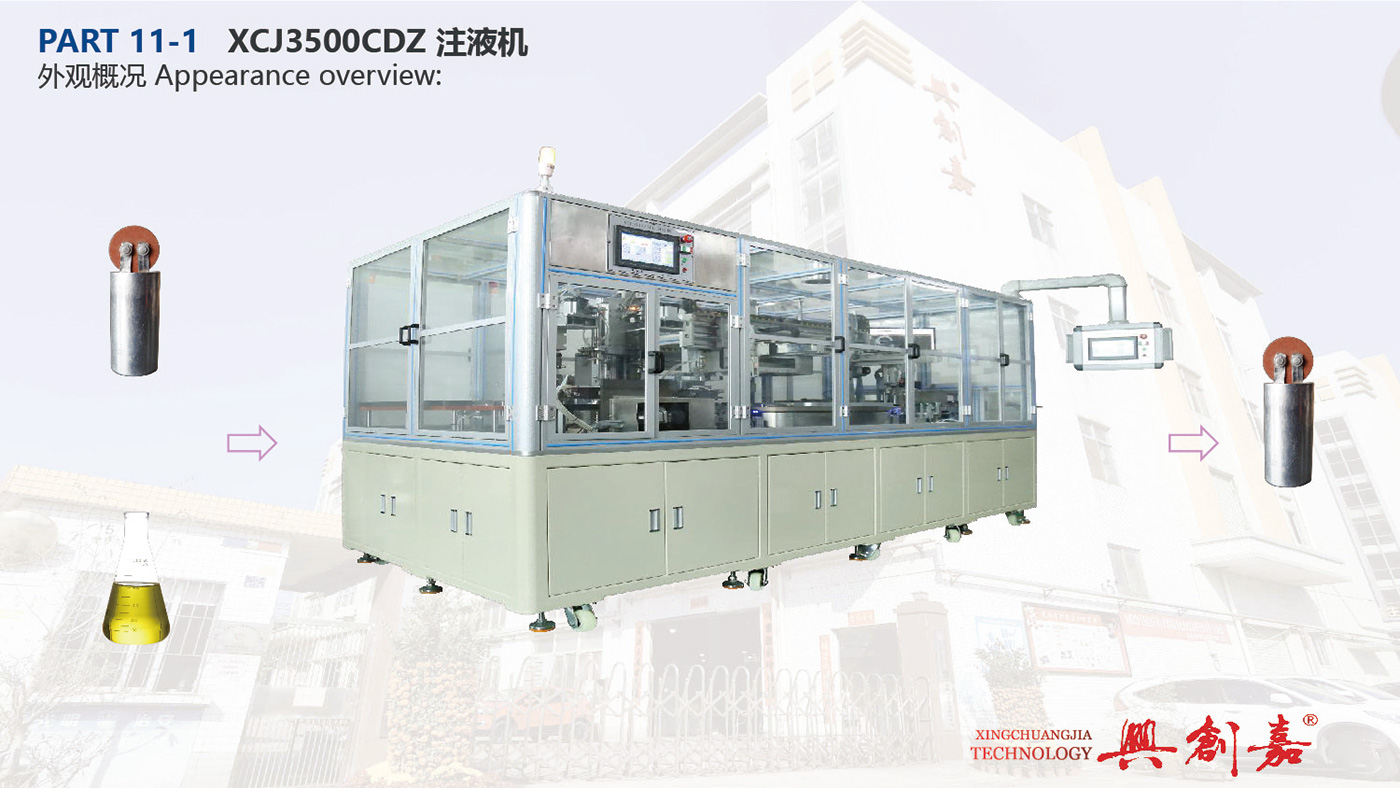

XCJ3500CDZ Liquid injection machine

1. Size：5550x2250x2200mm

2. Weight：4280Kg

3. Power supply/power：AC3800V/50HZ/11KW

4. Product specification：￠22-45×22-120mm

5. Equipment speed：18±5pcs/min

6. Color：Standard color is computer white（Swatches are required for custom colors)

Product Video

未标题-2-30

未标题-2-31

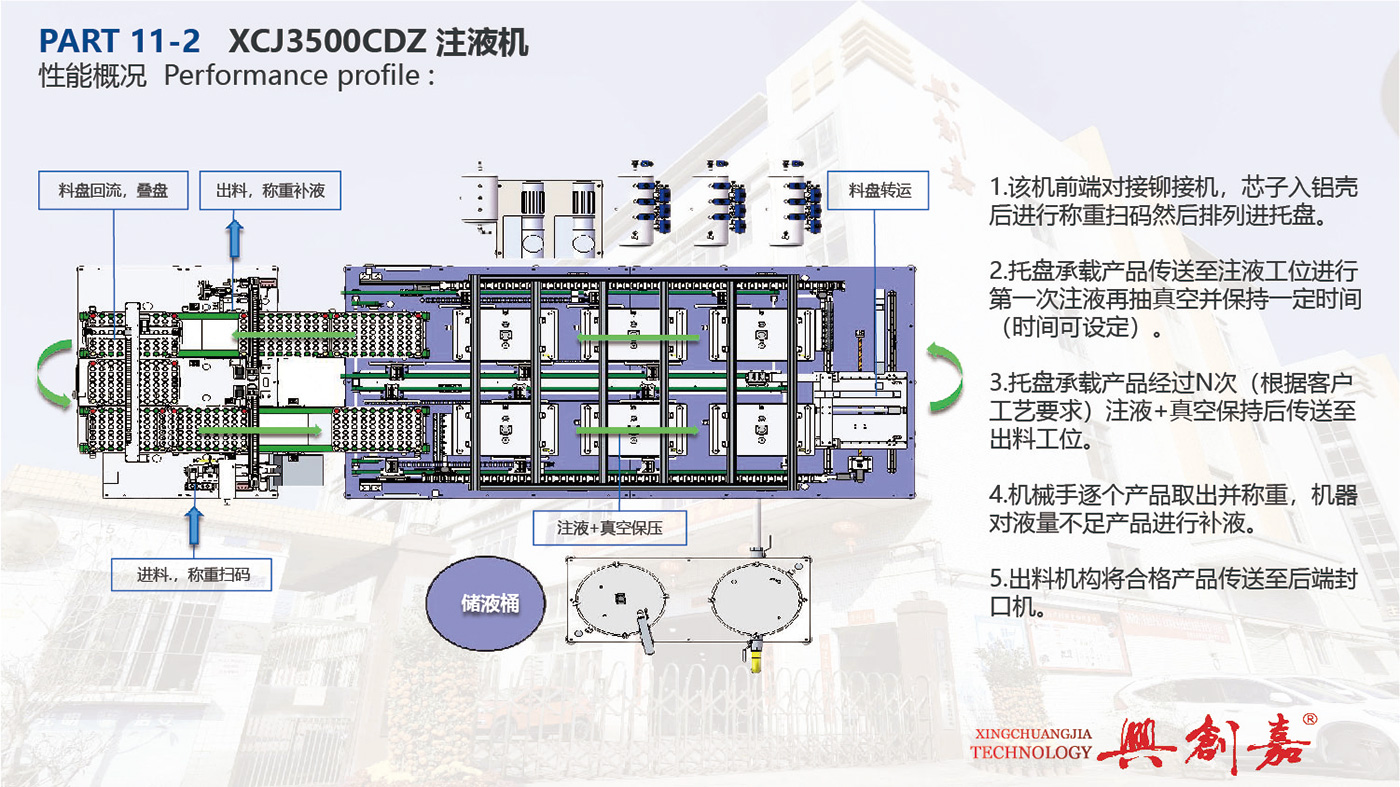

1. The front end of the machine is connected to the riveting machine. After the core is put into the aluminum shell, it is weighed, scanned, and then arranged into the tray.

2. The tray carrying the product is transferred to the liquid injection station for the first liquid injection and then vacuuming for a certain period of time (the time can be set).

3. The products carried on the pallet are transferred to the discharging station after N times of liquid injection + vacuum maintenance (according to customer process requirements).

4. The robot takes out and weighs the products one by one, and the machine refills the products with insufficient liquid.

5. The discharging mechanism transfers qualified products to the rear-end sealing machine.
