XCJ1200TB Casing machine

1. Size ：1730 × 970 × 1370mm

2. Weight ：800KG

3. Power supply ：AC220V/50HZ/60HZ

4. Power ：3KW

5. Product specification : φ16-φ22×20-45

6. Equipment speed：35-45pcs/min

7. Color ：The standard color is apple green（Swatches are required for custom colors)

Product Video

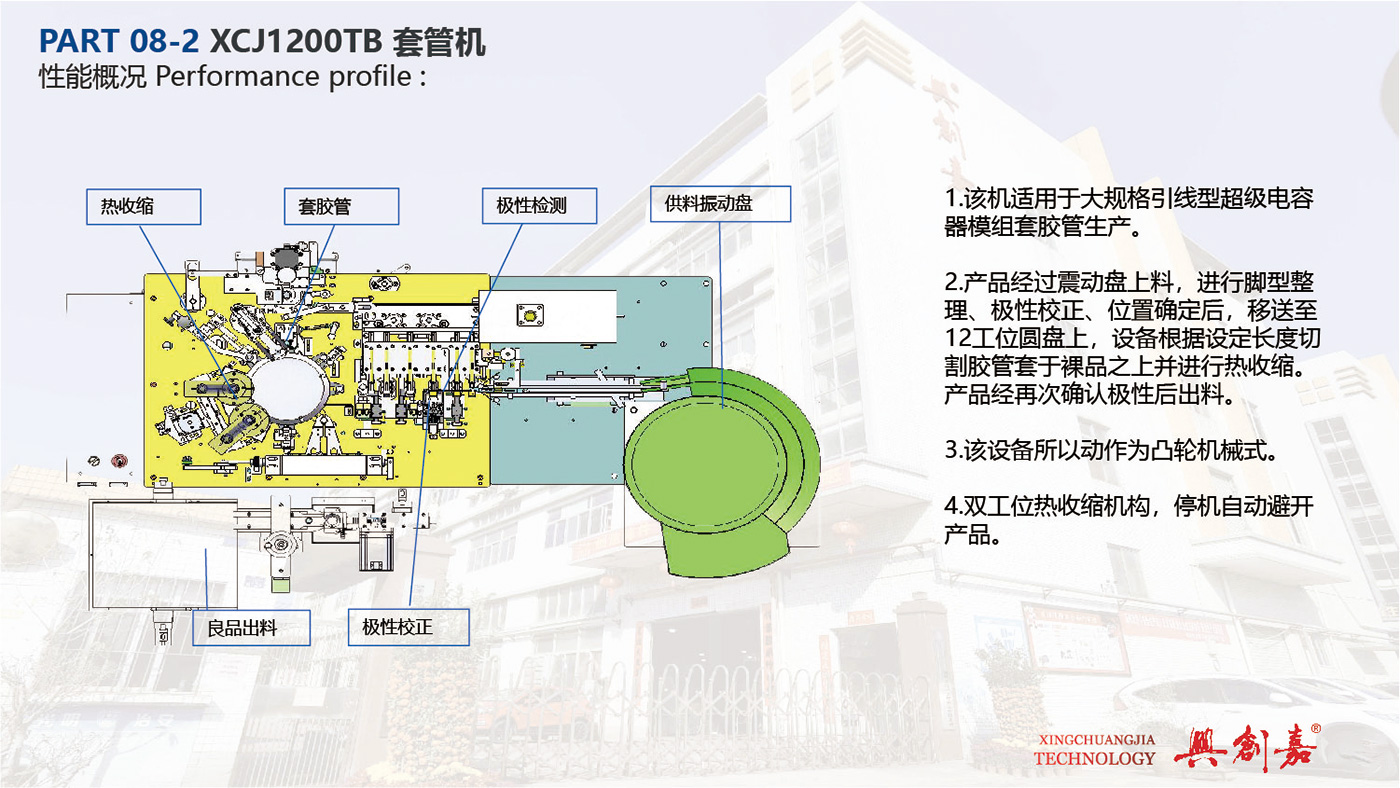

1. This machine is suitable for the production of large-size lead-type supercapacitor module sleeve rubber tubes.

2. After the product is loaded on the vibrating plate, the foot shape is sorted, the polarity is corrected, and the position is determined, it is transferred to the 12-station disc. The equipment cuts the hose according to the set length and puts it on the bare product and performs heat shrinkage. The product is discharged after confirming its polarity again.

3. The action of this device is cam mechanical.

4. Dual-station heat shrink mechanism, automatically avoids products when the machine is stopped.
