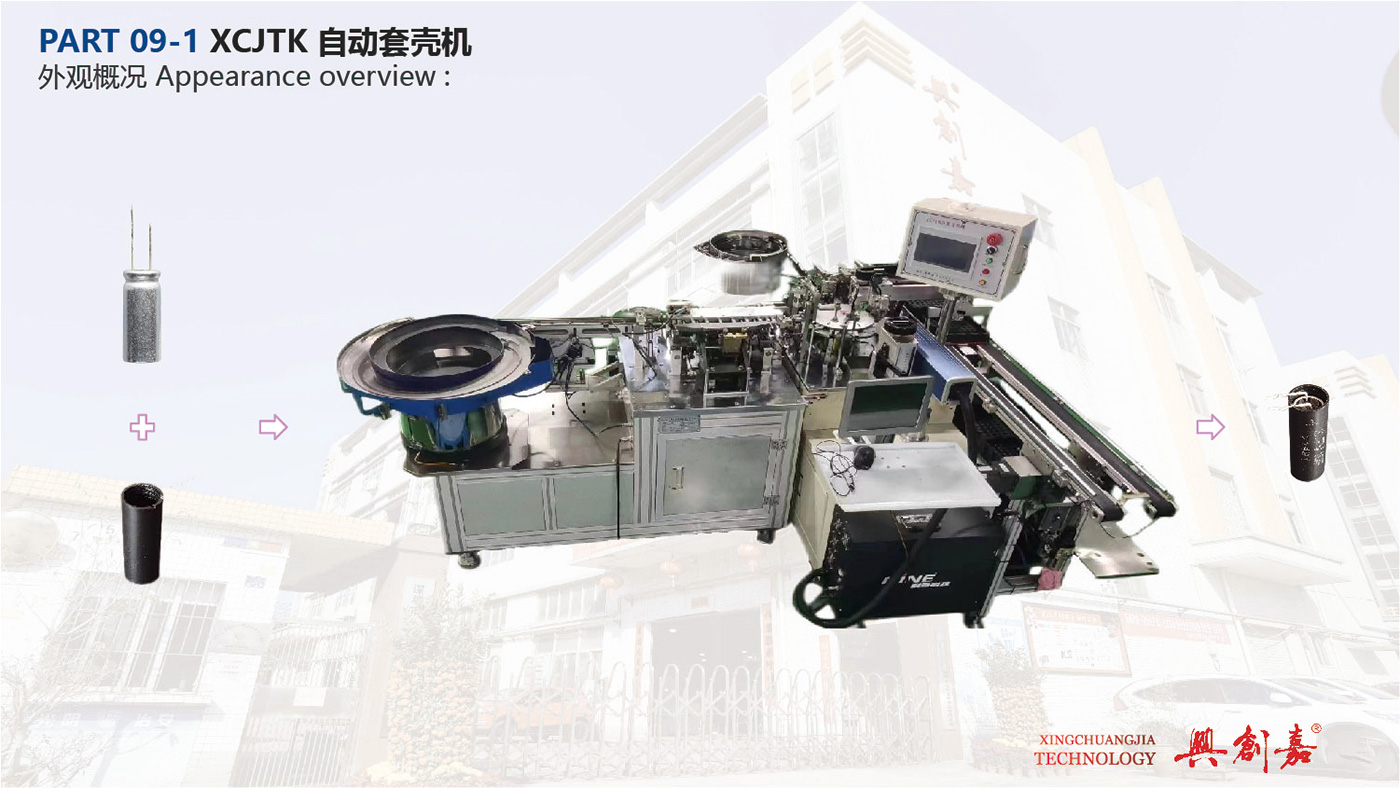

XCJTK Automatic casing machine

1. Size ：2300 × 2200 × 1700mm

2. Weight ：680KG

3. Power supply ：AC220V/50HZ/60HZ

4. Power ：2.5KW

5. Product specification：φ4-φ12×5-26mm

6. Equipment speed：70-110pcs/min

7. Color ：The standard color is apple green（Swatches are required for custom colors)

Product Video

未标题-2-24

未标题-2-25

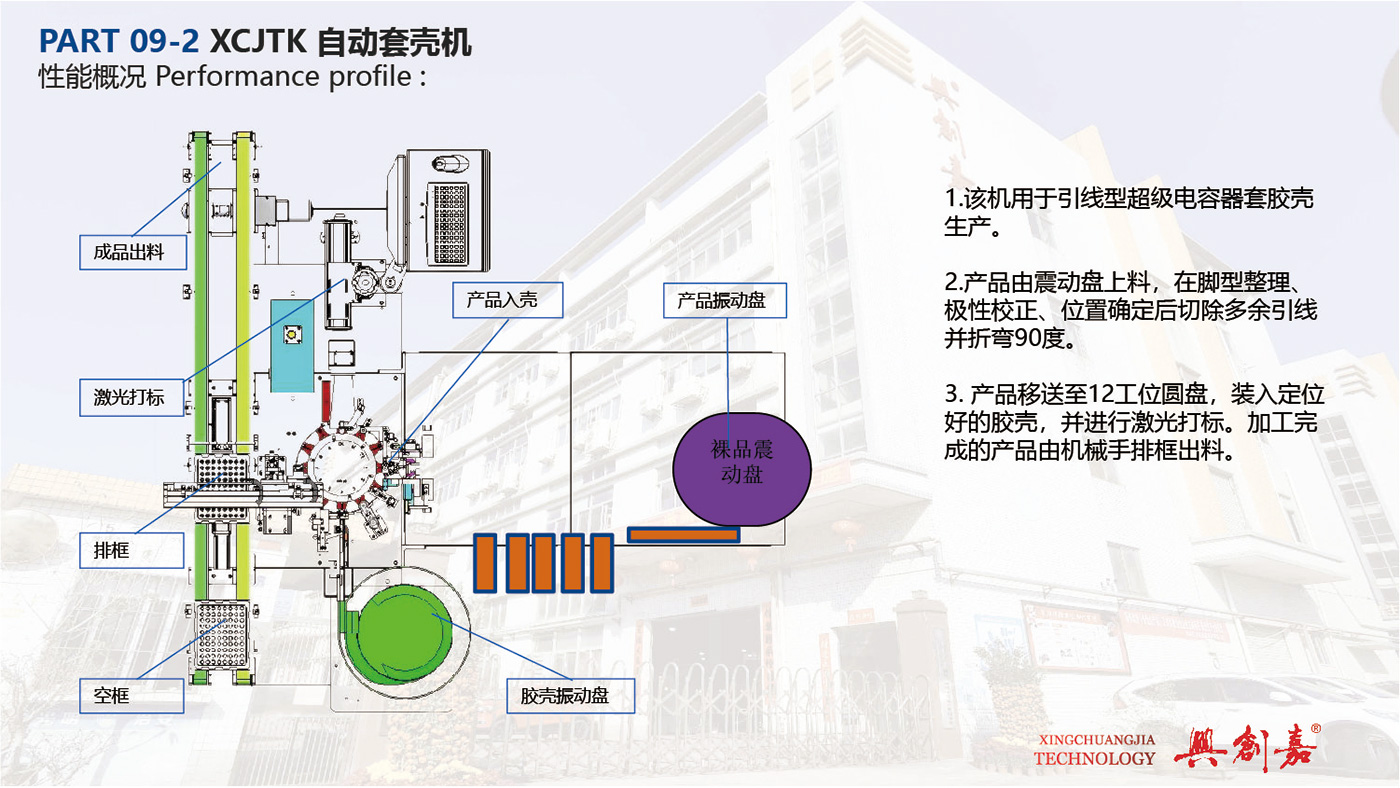

1. This machine is used for the production of lead-type supercapacitor rubber casings.

2. The product is loaded from the vibration plate, and after the foot shape is sorted, the polarity is corrected, and the position is determined, the excess leads are cut off and bent at 90 degrees.

3. The product is transferred to the 12-station disc, put into the positioned plastic shell, and laser marked. The processed products are discharged from the frame by the robot.
