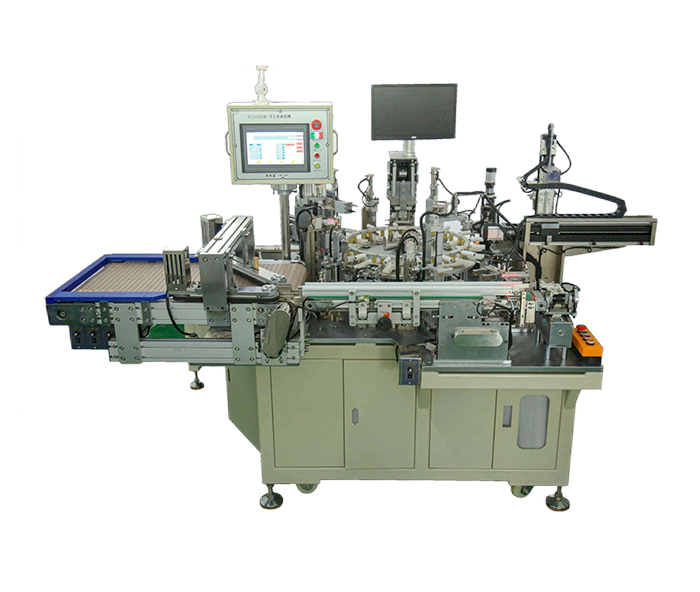

XCJ3500SMZ Automatic feeding riveting cover bending machine

1. Size：2530x1700x1850mm

2. Weight：1600KG

3. Power supply/ Power：AC220V/50HZ/60HZ / 4KW

4. Product specification：Ø22- Ø45×22-120

5. Equipment speed：18±5pcs/min（Different specification products have different Speed）

6. Color：Standard color is computer white（Swatches are required for custom colors)

Product Video

未标题-2-27

未标题-2-28

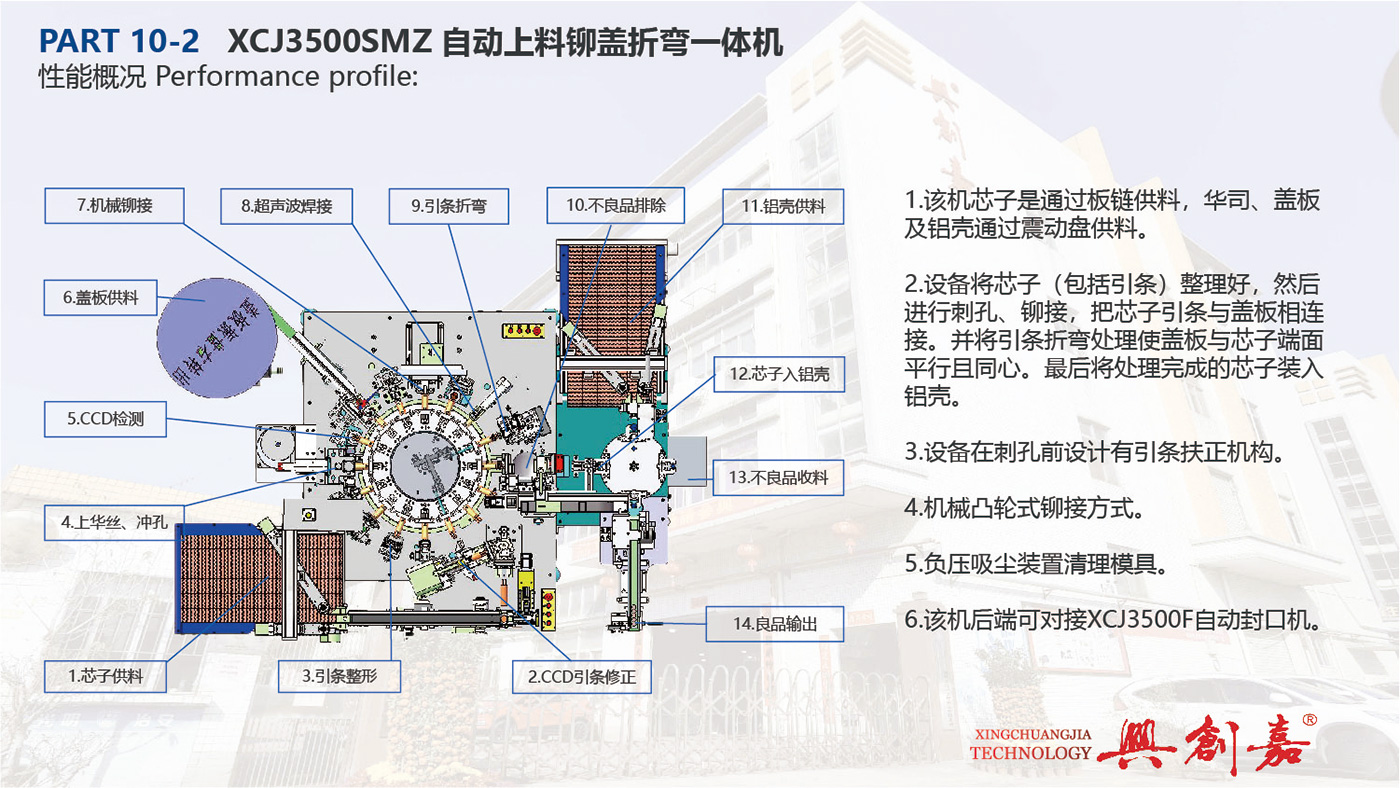

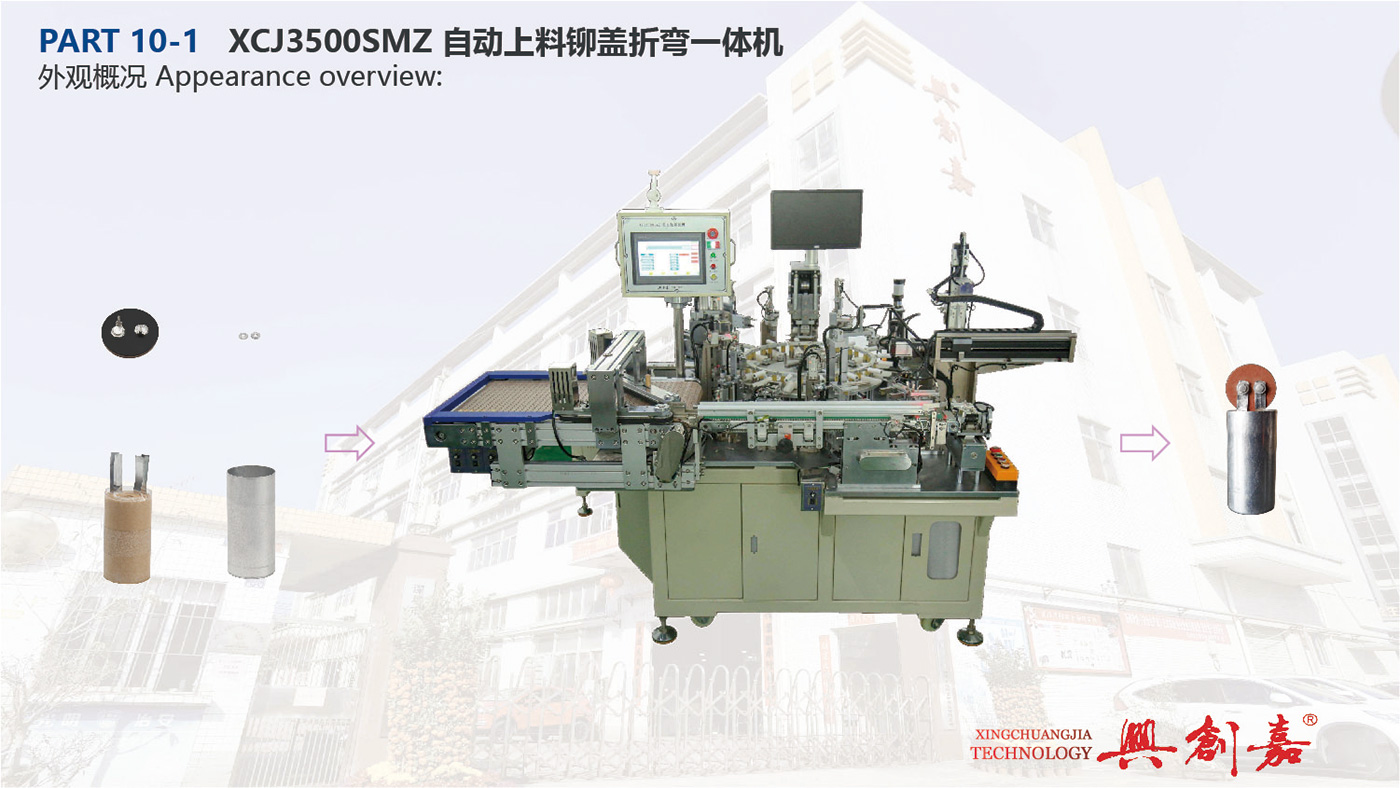

1. The machine core is fed through a plate chain, and the washers, cover plates and aluminum shells are fed through a vibration plate.

2. The equipment arranges the core (including the lead strips), then punctures and rivets, and connects the core lead strips to the cover plate. And bend the lead strip to make the cover plate parallel and concentric with the end face of the core. Finally, the processed core is packed into an aluminum shell.

3. The equipment is designed with a guide bar centering mechanism before puncturing.

4. Mechanical cam riveting method.

5. Use a negative pressure vacuum device to clean the mold.

6. The back end of the machine can be connected to the XCJ3500F automatic sealing machine.
