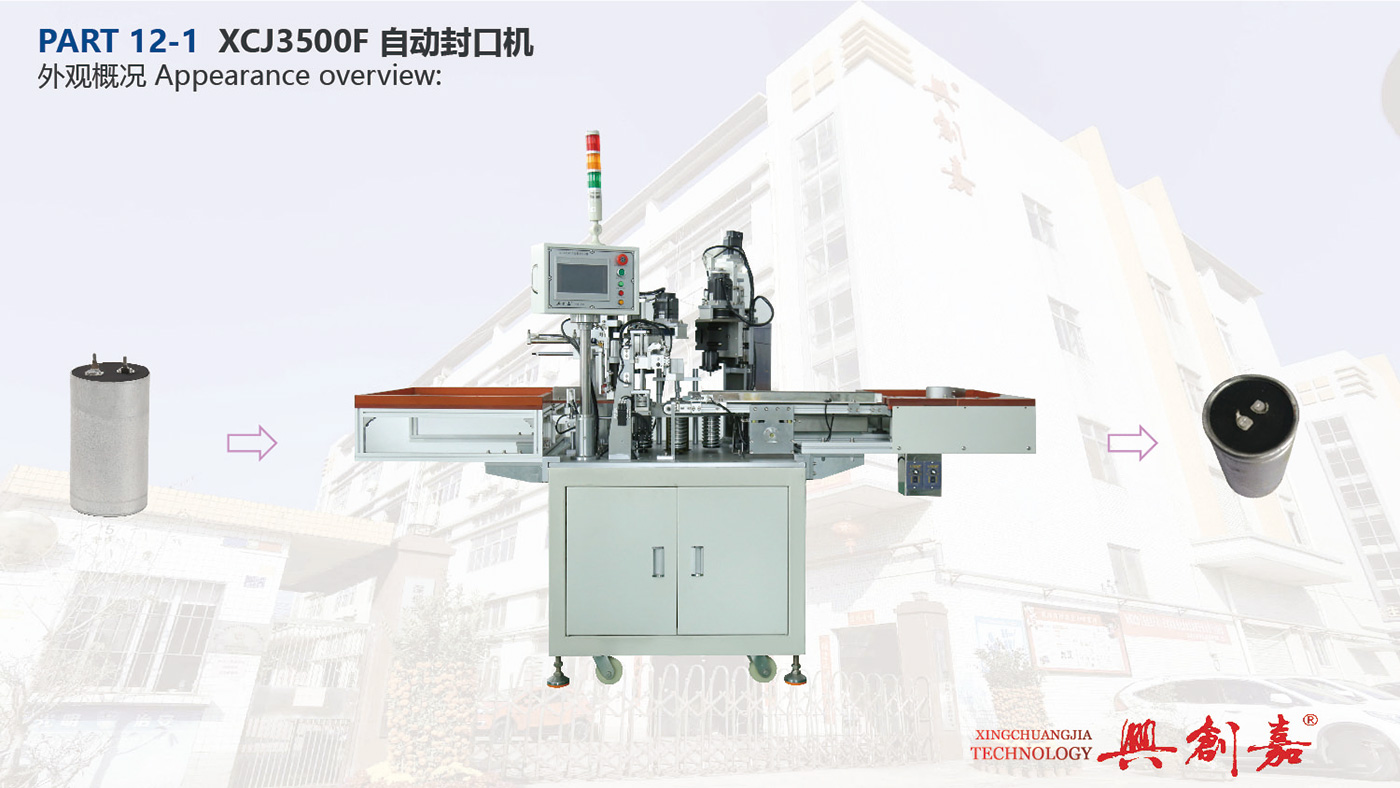

XCJ3500F Automatic sealing machine

1. Size：1100x900x1800mm

2. Weight：540KG

3. Power supply/ Power：AC220V / 50HZ / 60HZ / 4.5KW

4. Product specification：Ø22- Ø45×22-120

5. Equipment speed：20±5pcs/min

6. Color：Standard color is computer white（Swatches are required for custom colors)

Product Video

未标题-2-33

未标题-2-34

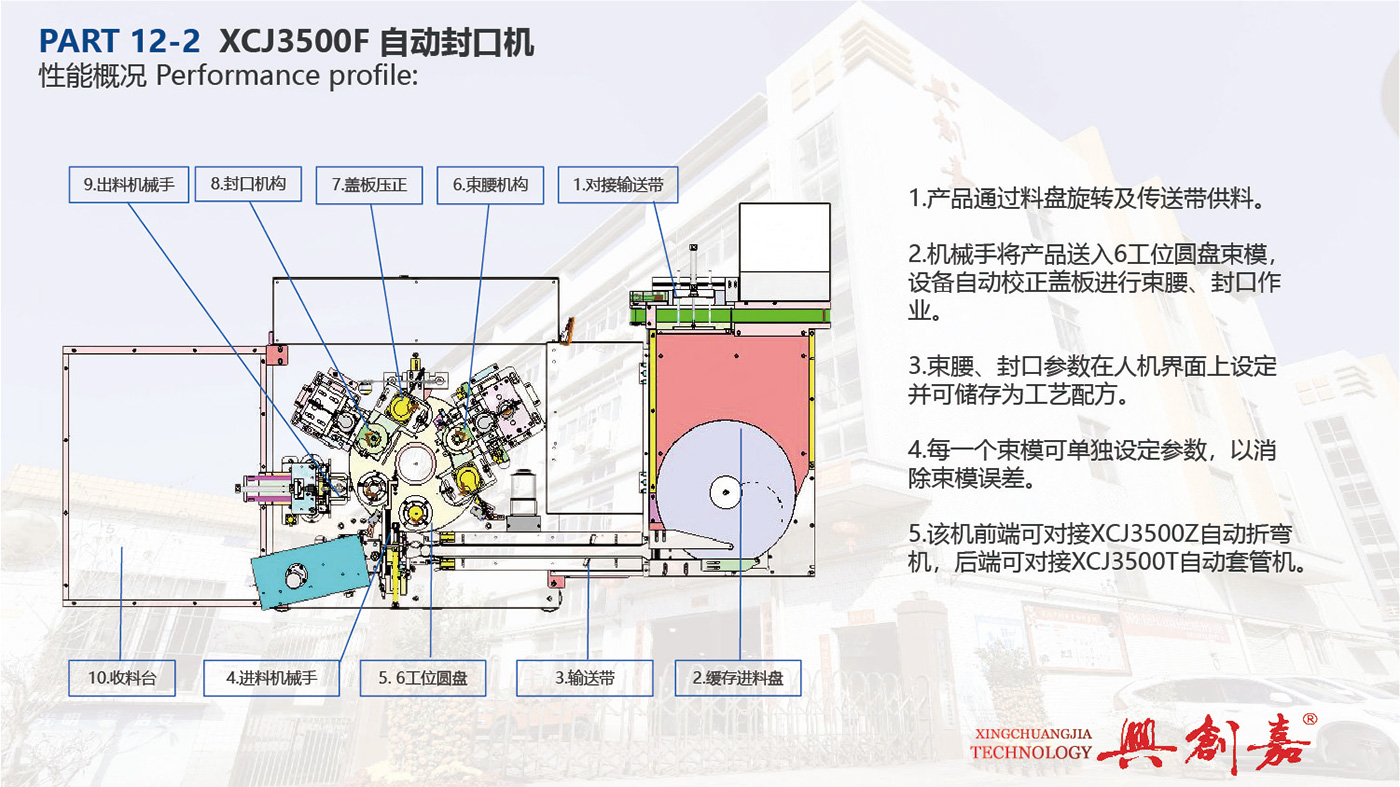

1. Products are fed through rotating trays and conveyor belts.

2. The manipulator feeds the product into the 6-station disc bundling mold, and the equipment automatically corrects the cover plate for bundling and sealing operations.

3. The girdle and sealing parameters are set on the human-machine interface and can be stored as process recipes.

4. Each beam mode can set parameters independently to eliminate beam mode errors.

5. The front end of the machine can be connected to the XCJ3500Z automatic bending machine, and the rear end can be connected to the XCJ3500T automatic casing machine.
